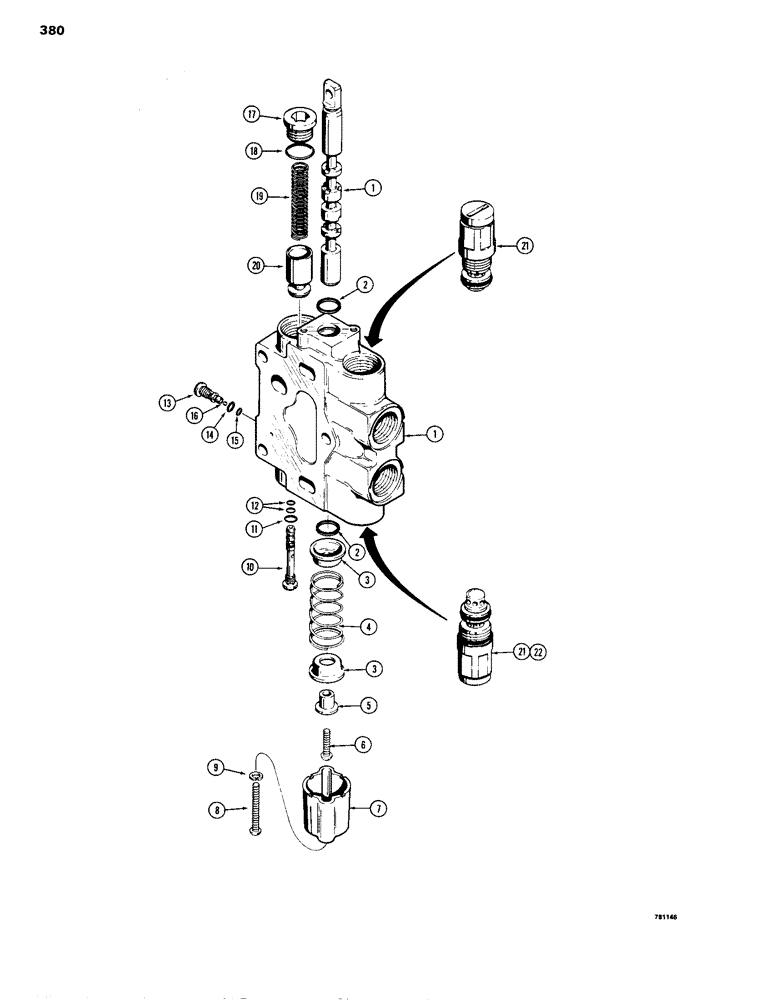

Запчасти Case 1150B (380) - D87085 AND D87076 SECTIONS (07) - HYDRAULIC SYSTEM

D87085

VALVE

LOADER RIPPER, BUCKET CLAM OR FELLER BUNCHER GRAB AND SHEAR SECTION - identification no. 218

1шт.

D87076

VALVE

DOZER RIPPER OR PULL BEHIND SECTION - identification no. 216, Includes: Refs. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL

1шт.

2

D32114

O-RING,0.75" ID x 0.875" OD

2шт.

3

CASR30191

RETAINER

- spring

2шт.

4

R30192

SPRING

1шт.

5

D78452

BUSHING

SPACER

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

7

D78454

HOUSING

1шт.

8

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- slotted, 1/4" - 20 NC x 2-1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

D87080

VALVE

SHUTTLE - primary, Includes: Refs. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY

1шт.

R30186

SEAL

KIT - seal, Includes: Refs. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of Seal Kit, P/N R30186

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - small

2шт.

Part of Seal Kit, P/N R30186

1шт.

D87081

SCREW

SHUTTLE - secondary, Refs. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Refs. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of Seal Kit, P/N R30185

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30185

1шт.

16

211-255

BALL,3/16 Dia

steel 3/16 Dia

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

R30189

SPRING

1шт.

20

D87082

VALVE POPPET

POPPET

1шт.

21

D78480

VALVE

- relief, parts list Fig. 391, D87076 section uses 2, D87085 section uses 1

1-2шт.

22

D75858

VALVE, PRESSURE RELI

VALVE - anticavitation and relief, parts list Fig. 390, D87085 section only

1шт.
