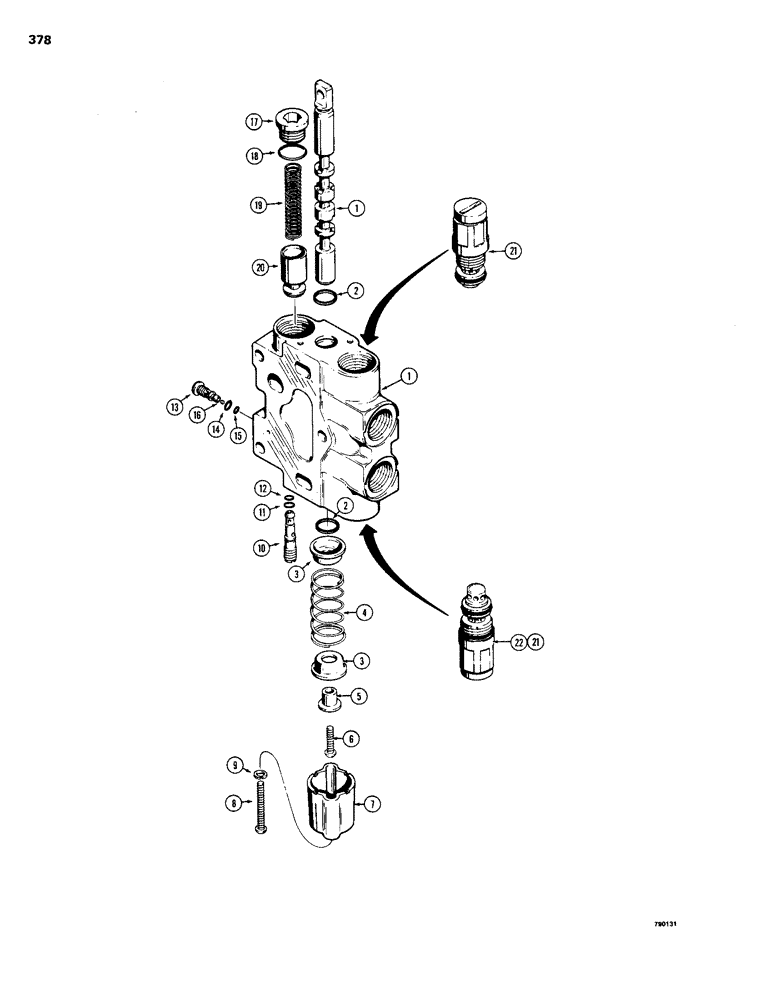

Запчасти Case 1150B (378) - D77565 & R38696 SECTION, RIPPER, 4-IN-1 BUCKET OR FELLER BUNCHER (07) - HYDRAULIC SYSTEM

D77565

VALVE

DOZER RIPPER, LOADER, 4-IN-1 BUCKET OR FELLER BUNCHER SECTION - identification no. 211

1шт.

R38696

GAUGE

LOADER RIPPER, 4-IN-1 BUCKET OR FELLER BUNCHER SECTION- identification no. 210, Includes: Refs. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL

1шт.

2

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

(Replaced D32114) -118, 70 Duro, .862" ID x .103" Thk

2шт.

3

R30191

WASHER

- spring

2шт.

4

R30192

SPRING

1шт.

5

D78452

BUSHING

SPACER

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

7

D78454

HOUSING

1шт.

8

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- slotted, 1/4" - 20 NC x 2-1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Refs. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY

1шт.

R30186

SEAL

KIT - seal, Includes: Refs. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of Seal Kit, P/N R30186

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30186

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of Seal Kit, P/N R30185

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of Seal Kit, P/N R30185

1шт.

16

211-255

BALL,3/16 Dia

steel 3/16 Dia

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

R30189

SPRING

1шт.

20

D78440

SPOOL

POPPET

1шт.

21

D78480

VALVE

- relief, parts list Fig. 391, D77565 section uses 2, R38696 section uses 1

1-2шт.

22

D75858

VALVE, PRESSURE RELI

VALVE - anticavitation, R38696 section, parts list figure 390

1шт.
