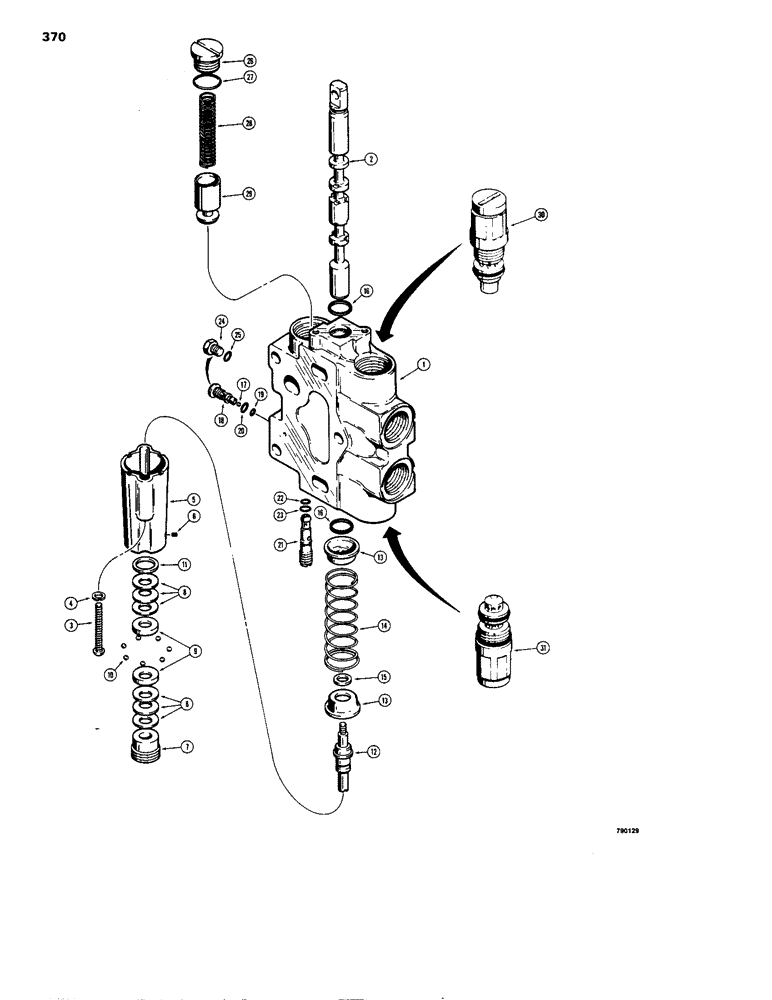

Запчасти Case 1150B (370) - R30145 LOADER LIFT SECTION (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
R30145
SECTOR
SECTION - valve, identification no. 301, Includes: Refs. 1 - 31
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - valve section
1шт.
3
75-436
SCREW,Rd, 1/4" - 20 x 2 1/4"
- machine, round head, 1/4" - 20 NC x 2-1/4"
2шт.
4
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
5
R30190
HOUSING
- detent
1шт.
6
R30195
SCREW
- set, adjustment plug
1шт.
7
R30194
PLUG
- adjustment, detent
1шт.
8
D78437
WASHER
- spring type
6шт.
9
D78439
RETAINER
CAM - spool detent
2шт.
10
211-257
BALL,1/4" Dia
Detent cam 1/4" Dia
7шт.
11
D78438
WASHER
- retainer
1шт.
12
D78447
SHAFT
- detent
1шт.
13
R30191
WASHER
- centering spring
2шт.
14
R30192
SPRING
- spool centering
1шт.
15
R30198
WASHER
- detent shaft
1шт.
R30162
SEAL,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
KIT - repair, spool seal, Includes: Refs. 16 & 17
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING
2шт.
17
211-255
BALL,3/16 Dia
shuttle 3/16 Dia
1шт.
R30157
LOCK VALVE
SHUTTLE - secondary, Includes: Refs. 18 - 20
1шт.
18
R30158
LOCK VALVE
PLUG - shuttle
1шт.
R30185
SEAL KIT
KIT - repair, seal, Includes: Ref. 19 & 20
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - inner
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - outer
1шт.
R30158
LOCK VALVE
SHUTTLE - primary
1шт.
21
NSS
NOT SOLD SEPARAT
BODY ASSEMBLY - shuttle
1шт.
R30186
SEAL
KIT - repair, seal, Includes: Refs. 22 & 23
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - small
1шт.
Part of Repair Kit, P/N R30186
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING - large
1шт.
Part of Repair Kit, P/N R30186
1шт.
26
9841223
PLUG,1-1/16" - 12 ORB
Load check, Incl. Ref. 27 Hex Soc, 1 1/16"-12 ORB
1шт.
27
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
28
R30189
SPRING
- poppet
1шт.
29
D78440
SPOOL
POPPET - load check
1шт.
30
R30165
HYDRAULIC VALVE
VALVE - anticavitation, parts list Fig. 392
1шт.
31
R30163
LOCK VALVE
VALVE - relief, parts list Fig. 390
1шт.
Выбрано товаров: 37
