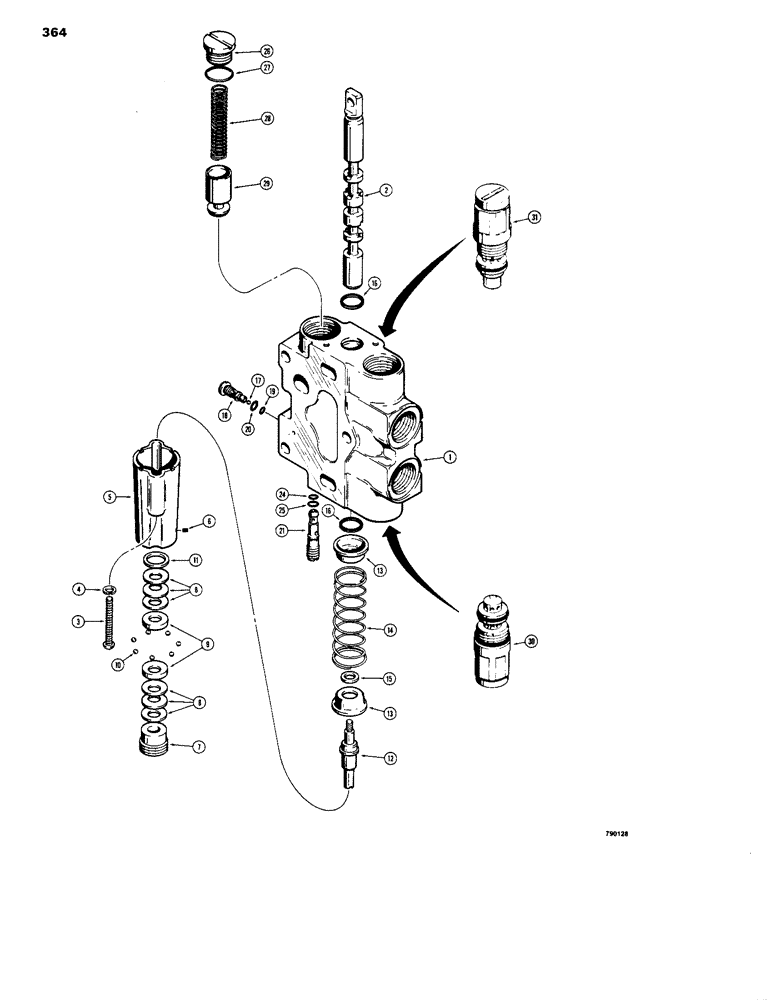

Запчасти Case 1150B (364) - R30141 BUCKET OR FELLER BUNCHER TILT SECTION (07) - HYDRAULIC SYSTEM

R30141

KNIFE SECTION

BUCKET OR FELLER BUNCHER SECTION - identification no. 401, Includes: Refs. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

R30161

KIT

- repair, spool, Includes: Refs. 3 - 15

1шт.

3

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- machine, round head, 1/4" - 20 NC x 2-1/4"

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

R30190

HOUSING

- detent

1шт.

6

R30195

SCREW

- set, adjustment plug

1шт.

7

R30194

PLUG

- adjustment, detent

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - spring type

6шт.

9

NSS

NOT SOLD SEPARAT

CAM - spool detent

2шт.

10

211-257

BALL,1/4" Dia

Detent cam 1/4" Dia

7шт.

11

NSS

NOT SOLD SEPARAT

WASHER - retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - detent

1шт.

13

CASR30191

RETAINER

- centering spring

2шт.

14

R30192

SPRING

- spool centering

1шт.

15

R30193

BUSHING

WASHER - detent stop

1шт.

R30162

SEAL,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

KIT - repair, spool seal, Includes: Refs. 16 & 17 and P/N R30158

1шт.

16

G46908

O-RING

(Replaced NSS)

2шт.

17

211-255

BALL,3/16 Dia

shuttle 3/16 Dia

1шт.

R30157

LOCK VALVE

SHUTTLE - secondary

1шт.

18

R30158

LOCK VALVE

PLUG - shuttle, Includes: P/N 30185 and Refs. 19 & 20

1шт.

R30185

SEAL KIT

KIT - repair, seal, Includes: Refs. 19 & 20

1шт.

19

A47101

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

-008, 90 Duro, .176" ID x .070" Thk, inner (Replaced NSS)

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - outer

1шт.

R30158

LOCK VALVE

SHUTTLE - primary, Includes: Refs. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30186

SEAL

KIT - repair, seal, Includes: Refs. 24 & 25

1шт.

24

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, small (Replaced NSS)

1шт.

25

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

(Replaced NSS) -009, 90 Duro, .208" ID x .070" Thk

1шт.

26

9841223

PLUG,1-1/16" - 12 ORB

Load check, Incl. Ref. 27 Hex Soc, 1 1/16"-12 ORB

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

R30189

SPRING

- poppet

1шт.

29

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

30

R30156

VALVE

- relief, at Port B, parts list Fig. 390

1шт.

31

R30159

VALVE

- relief, at Port A, parts list Fig. 390

1шт.
