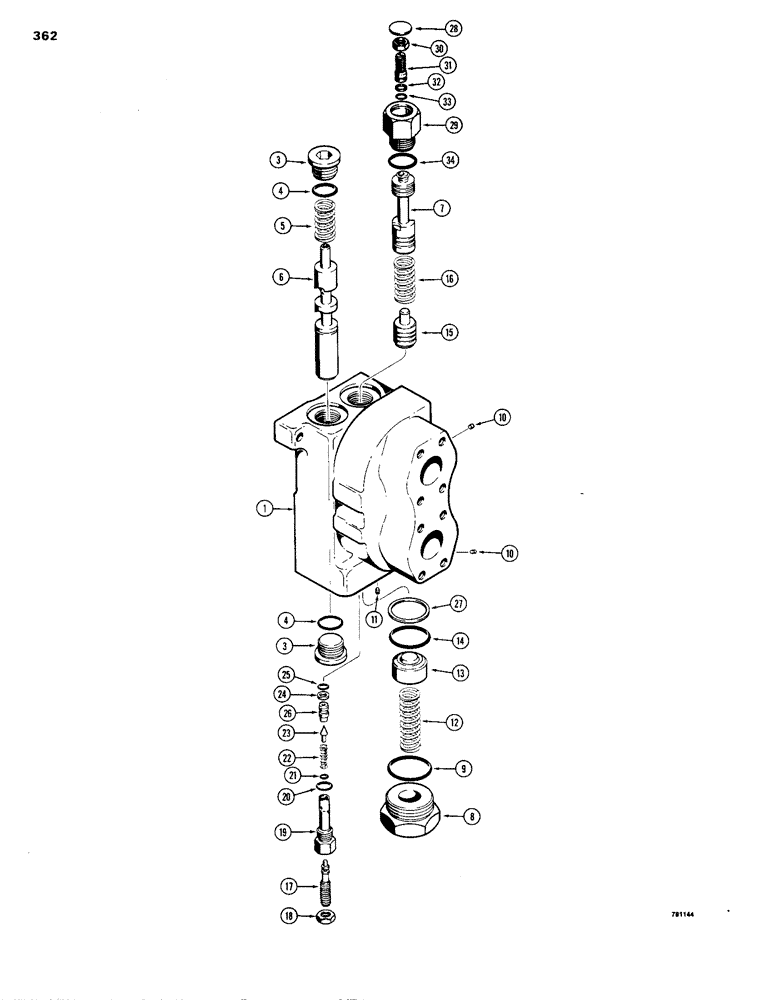

Запчасти Case 1150B (362) - D87071 INLET AND OUTLET SECTION (07) - HYDRAULIC SYSTEM

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, Includes: Refs. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 4 Hex Soc, 1 1/16"-12 ORB

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

D78464

SPRING

1шт.

6

D78463

SPOOL

1шт.

7

D78457

RESTRICTOR

SPOOL - unloading

1шт.

8

D78462

PLUG

- hex head, Includes: Ref. 9

1шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

10

D78456

PLUG

RESTRICTOR

2шт.

11

D78455

PLUG

- hex socket

1шт.

12

R30171

SPRING

1шт.

13

D78461

PISTON ASSY.

PISTON

1шт.

14

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

15

D78459

SEAT

- spring

1шт.

16

D78458

SPRING

1шт.

N6027

VALVE

RELIEF ASSEMBLY, Includes: Refs. 17 - 26

1шт.

17

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

1шт.

18

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

19

NSS

NOT SOLD SEPARAT

BODY

1шт.

20

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

A51274

O-RING,0.145" ID x 0.285" OD

1шт.

22

D78468

SPRING

1шт.

23

D78469

PLUNGER

1шт.

24

L35305

RING

- backup

1шт.

25

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT AND SCREEN - early models may not include screen

1шт.

27

D87079

RING

- backup

1шт.

28

D87075

COVER

CAP - dust

1шт.

D87077

PLUG

ASSEMBLY - see service manual for adjusting procedure, Includes: Refs. 29 - 34

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG

1шт.

30

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

32

D87094

BACK-UP RING

- backup

1шт.

33

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
