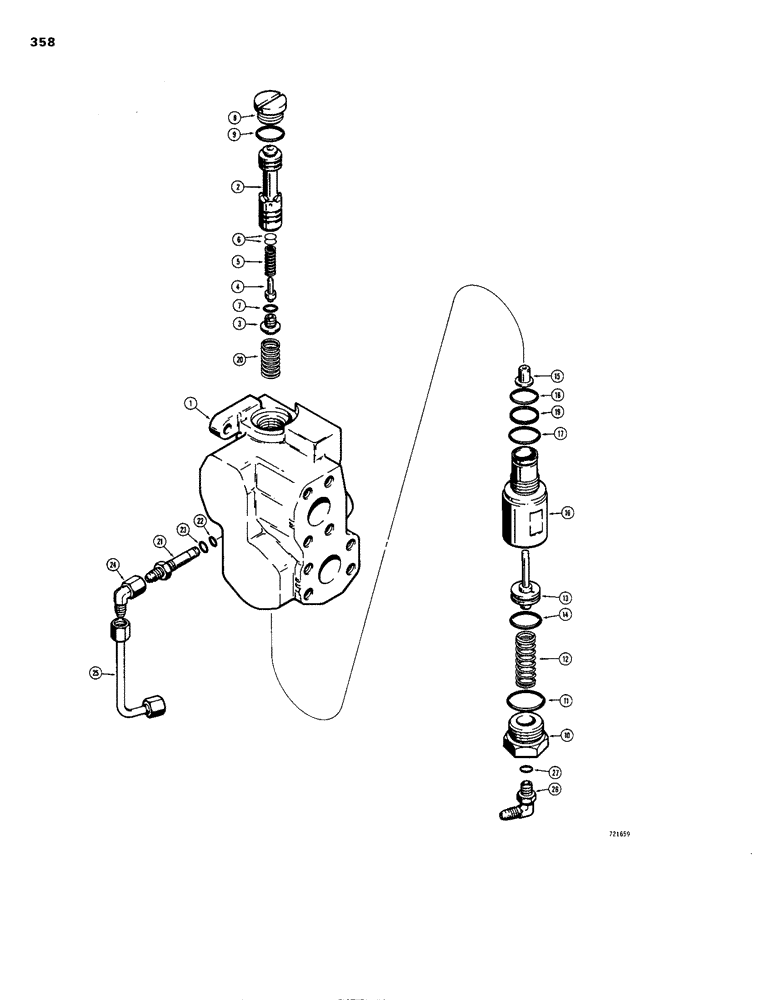

Запчасти Case 1150B (358) - R30140 VALVE SECTION (LOADER INLET/OUTLET), R30150 VALVE SECTION (DOZER INLET/OUTLET) (07) - HYDRAULIC SYSTEM

R30140

SEGMENT

SECTION - loader inlet and outlet, identification no. 005

1шт.

R30150

HYD VALVE SECTION

Dozer inlet and outlet, identification no. 004, Includes: Refs. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - inlet and outlet section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - main relief

1шт.

R30200

KIT

Repair, main relief, Includes: Refs. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - relief

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER - relief

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

6

R30899

SHIM,.010" Thk

(0.254 mm)

1шт.

6

R30900

SHIM,.020" Thk

(0.508 mm)

1шт.

6

R30898

SHIM,.050" Thk

(1.270 mm)

1шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Replaced 219-5003)

1шт.

R33480

PLUG

ASSEMBLY - relief valve, Includes: Refs. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

R36508

CARTRIDGE

EXTENDER ASSEMBLY - flow (Replaced R30147), Includes: Refs. 10 - 19

1шт.

The Seal Kit for R36508 is one R30172 Kit and two L35305, back-up rings.

1шт.

10

R30170

PLUG

Extender

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N R30172 Flow Extender Seal Kit

1шт.

12

R30171

SPRING

Pre-load

1шт.

13

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - extender

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N R30172 Flow Extender Seal Kit

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - plunger

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - flow extender

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of P/N R30172 Flow Extender Seal Kit

1шт.

19

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of P/N R30172 Flow Extender Seal Kit

1шт.

20

R30139

SPRING

Unloading valve

1шт.

21

R30169

TUBE

SPARE PART Orifice

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

Part of P/N R30172 Flow Extender Seal Kit

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

Part of P/N R30173 Orifice Seal Kit

1шт.

24

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

FITTING

1шт.

25

R30155

TUBE

Extender

1шт.

26

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

FITTING - adjustable (Replaced 281-5103), Includes: Refs. 27

1шт.

27

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(Replaced 210-5003)

1шт.

R30172

SEAL

KIT, flow extender, Includes: Refs. 11, 14, 18, 19 and 22

1шт.

R30173

SEAL

KIT, orifice, Includes: Refs. 23

1шт.
