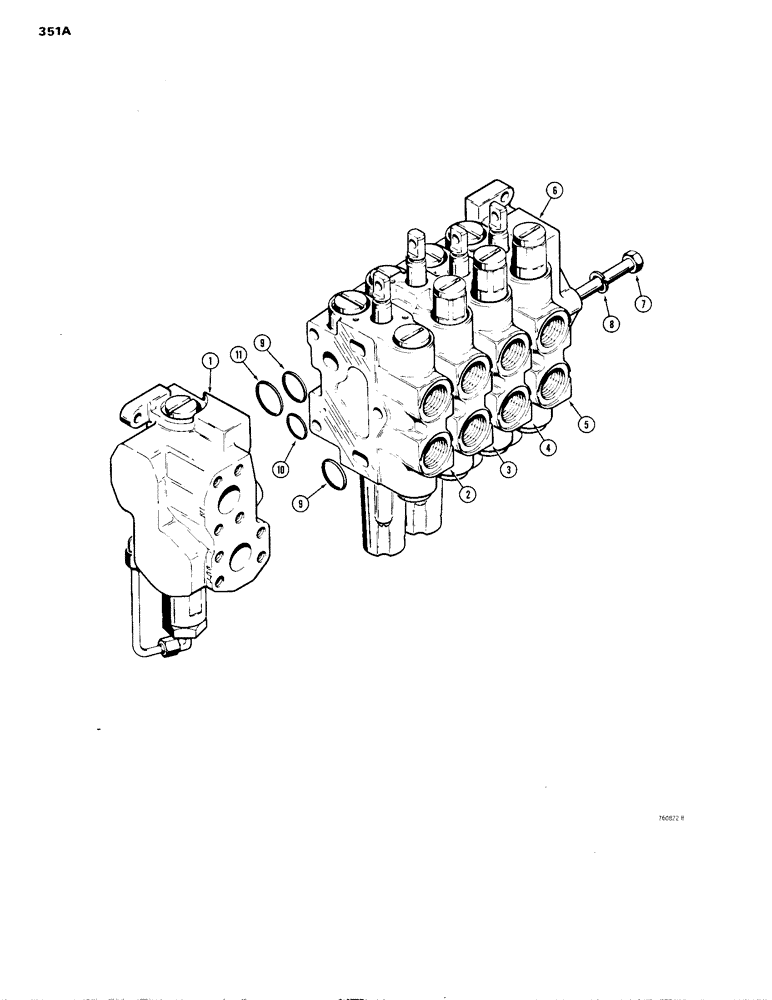

Запчасти Case 1150B (351A) - R26135 FOUR SPOOL VALVE, ANGLE TILT PITCH DOZER WITH RIPPER (07) - HYDRAULIC SYSTEM

R26135

VALVE ASSEMBLY, Includes: Refs. 1 - 11

1шт.

1

R30150

HYD VALVE SECTION

SECTION - inlet and outlet, identification no. 004, parts list Fig. 358

1шт.

1

R38637

SECTOR

SECTION - inlet and outlet, identification no. 105, parts list Fig. 360

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 362

1шт.

2

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 382

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 384

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 386

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 388

1шт.

4

R30151

HYD VALVE SECTION

SECTION - dozer angle, identification no. 204, parts list Fig. 382

1шт.

4

D87073

SEGMENT

SECTION - dozer angle, identification no. 217, parts list Fig. 384

1шт.

5

R29980

HYD VALVE SECTION

SECTION - ripper, identification no. 205, parts list Fig. 376

1шт.

5

R34024

KNIFE SECTION

SECTION - ripper, identification no. 202, parts list Fig. 376

1шт.

5

D38696

SECTION - ripper, identification no. 210, parts list Fig. 378

1шт.

5

D77565

VALVE

SECTION - ripper, identification no. 211, parts list Fig. 378

1шт.

5

D87076

VALVE

SECTION - ripper, identification no. 216, parts list Fig. 380

1шт.

5

D87075

COVER

SECTION - ripper, identification no. 218, parts list Fig. 380

1шт.

6

R30143

COVER

- end, valve

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

R37003

SEAL KIT

KIT - valve seal, Includes: Refs. 9 - 11

5шт.

Valves with metal backed rings or quad rings arae to be serviced with O-rings

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32.095 mm) OD

2шт.

Part of Valve Seal Kit, P/N R37003

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25.4 mm) OD

1шт.

Part of Valve Seal Kit, P/N R37003

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (36.75 mm) OD

1шт.

Part of Seal Kit, P/N R37003

1шт.
