Запчасти Case 1150B (345A) - R33644 FOUR SPOOL VALVE, LOADER WITH RIPPER AND 4-IN-1 BUCKET OR FELLER BUNCHER (07) - HYDRAULIC SYSTEM

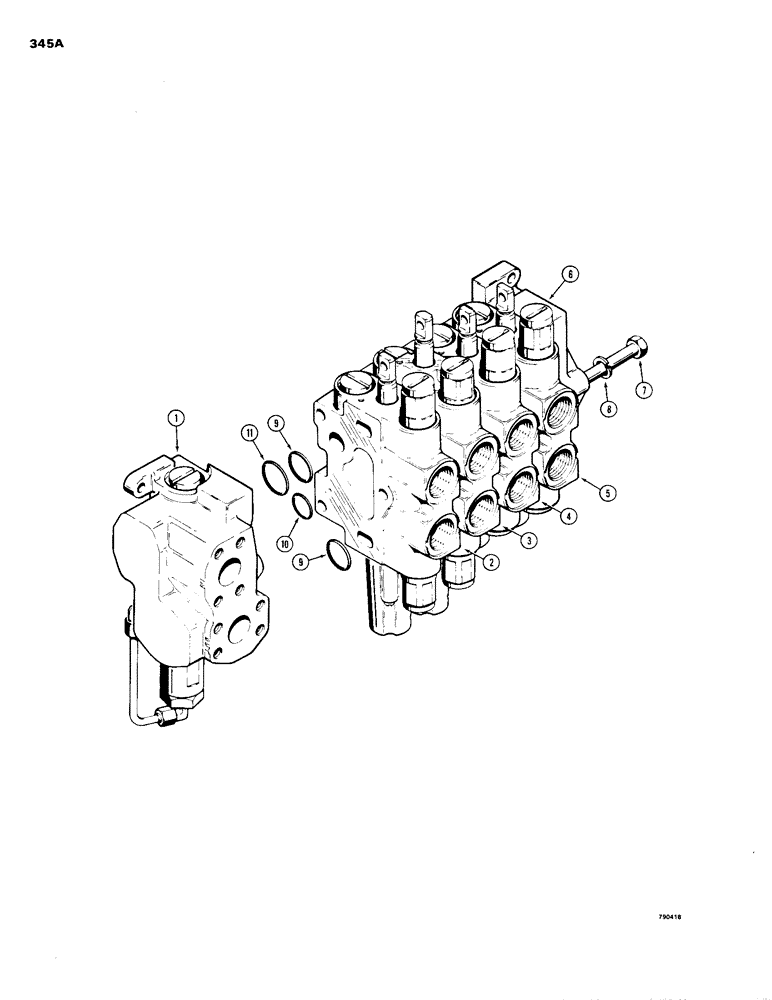

Схема запчастей Case 1150B - (345A) - R33644 FOUR SPOOL VALVE, LOADER WITH RIPPER AND 4-IN-1 BUCKET OR FELLER BUNCHER (07) - HYDRAULIC SYSTEM
8
11
6
1
9
4
2
9
10
5
7
3

Артикул

Название

Примечание

Количество

R33644

VALVE

ASSEMBLY, Includes: Refs. 1 - 11

1шт.

1

R30140

SEGMENT

SECTION - inlet and outlet, identification no. 005, parts list Fig. 358

1шт.

1

R38637

SECTOR

SECTION - inlet and outlet, identification no. 105, parts list Fig. 360

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 362

1шт.

2

R30141

KNIFE SECTION

SECTION - bucket or feller buncher tilt, identification no.401, parts list Fig. 364

1шт.

2

D77559

SPARE PART

SECTION - bucket or feller buncher tilt, identification no. 404, parts list Fig. 366

1шт.

2

N6126

VALVE

SECTION - bucket or feller buncher tilt, identification no. 406, parts list Fig.368

1шт.

3

R30145

SECTOR

SECTION - lift, identification no. 301, parts list Fig. 370, use D87084 section

1шт.

3

D77560

VALVE

SECTION - lift, identification no. 305, parts list Fig. 372, use D87084 section

1шт.

3

D87084

VALVE

SECTION - lift, identification no. 308, parts list Fig.374

1шт.

4

R34024

KNIFE SECTION

SECTION - bucket clam or feller buncher grab and shear, identification no. 302, parts list Fig. 376

1шт.

4

R38696

GAUGE

SECTION - bucket clam or feller buncher grab and shear, identification no. 210, parts list Fig. 378

1шт.

4

D87085

VALVE

SECTION - bucket clam or feller buncher grab and shear, identification no. 218, parts list Fig. 380

1шт.

5

R34024

KNIFE SECTION

SECTION - ripper, identification no. 202, parts list Fig. 376

1шт.

5

D38696

SECTION - ripper, identification no. 210, parts list Fig. 378

1шт.

5

D77565

VALVE

SECTION - ripper, identification no. 211, parts list Fig. 378

1шт.

5

D87076

VALVE

SECTION - upper, identification no. 216, parts list Fig. 380

1шт.

5

D87085

VALVE

SECTION - ripper, identification no. 218, parts list Fig. 380

1шт.

6

R30143

COVER

- end, valve

1шт.

7

D74375

BOLT

- special

3шт.

8

92-7

LOCK WASHER,7/16"

3шт.

R37003

SEAL KIT

KIT - valve seal, Includes: Refs. 9 - 11

5шт.

Valves with metal backed rings or quad rings arae to be serviced with O-rings

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32.095 mm) OD

1шт.

Part of Valve Seal Kit, P/N R37003

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25.4 mm) OD

1шт.

Part of Valve Seal Kit, P/N R37003

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (36.75 mm) OD

1шт.

Part of Valve Seal Kit, P/N R37003

1шт.

Выбрано товаров: 29
