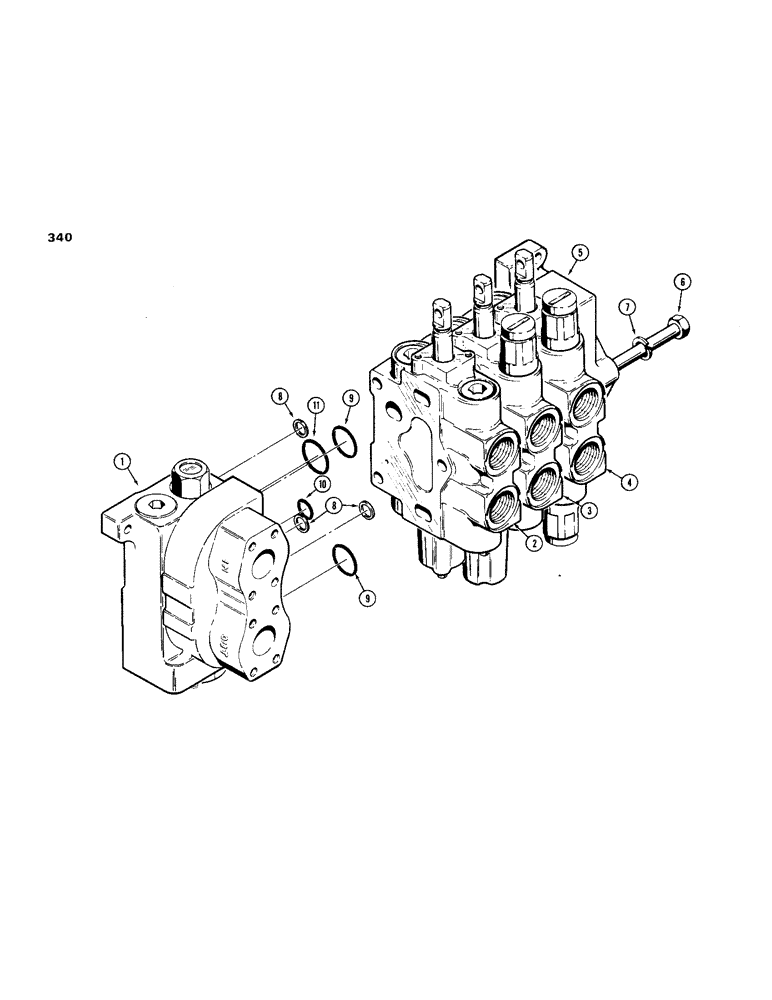

Запчасти Case 1150B (340) - R40906 THREE SPOOL VALVE, TILT DOZER WITH RIPPER, R40908 (07) - HYDRAULIC SYSTEM

R40906

VALVE

ASSEMBLY, Includes: Refs. 1 - 11

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 362

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 384

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 388

1шт.

4

D87076

VALVE

SECTION - ripper, identification no. 216, parts list Fig. 380

1шт.

5

D87072

COVER ASSY

COVER - end

1шт.

6

D74374

BOLT

- special

3шт.

7

92-7

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, Includes: Refs. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40908

HYDRAULIC VALVE

VALVE ASSEMBLY, Includes: Refs. 1 - 11

1шт.
