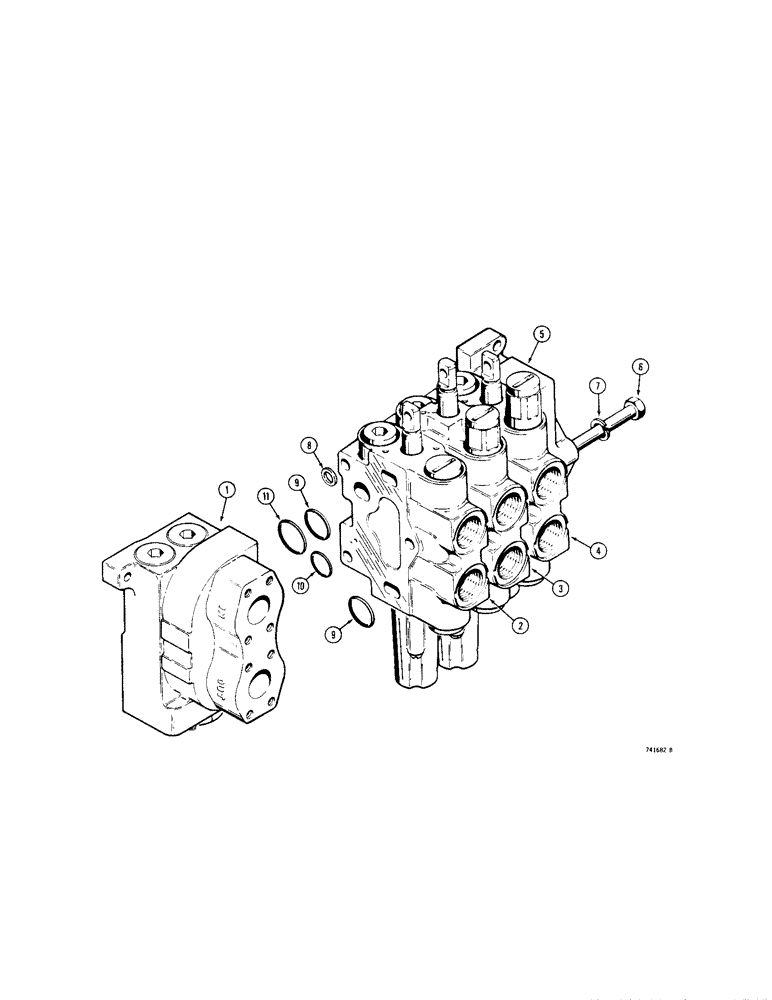

Запчасти Case 1150B (336[1]) - R36056 THREE SPOOL VALVE TILT DOZER WITH RIPPER (07) - HYDRAULIC SYSTEM

1

R38637

SECTOR

SECTION - inlet and outlet, identification no. 105, parts list Fig. 360

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 362

1шт.

2

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 382

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 384

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 386

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 388

1шт.

4

D77565

VALVE

SECTION - ripper, identification no. 211, parts list Fig. 378

1шт.

4

D87076

VALVE

SECTION - ripper, identification no. 266, parts list Fig. 380

1шт.

5

R30143

COVER

- end

1шт.

6

D74374

BOLT

- special

3шт.

7

92-7

LOCK WASHER,7/16"

3шт.

8

D77566

SHIM,.0030" Thk

4шт.

R37003

SEAL KIT

KIT - seal, Includes: Refs. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.
