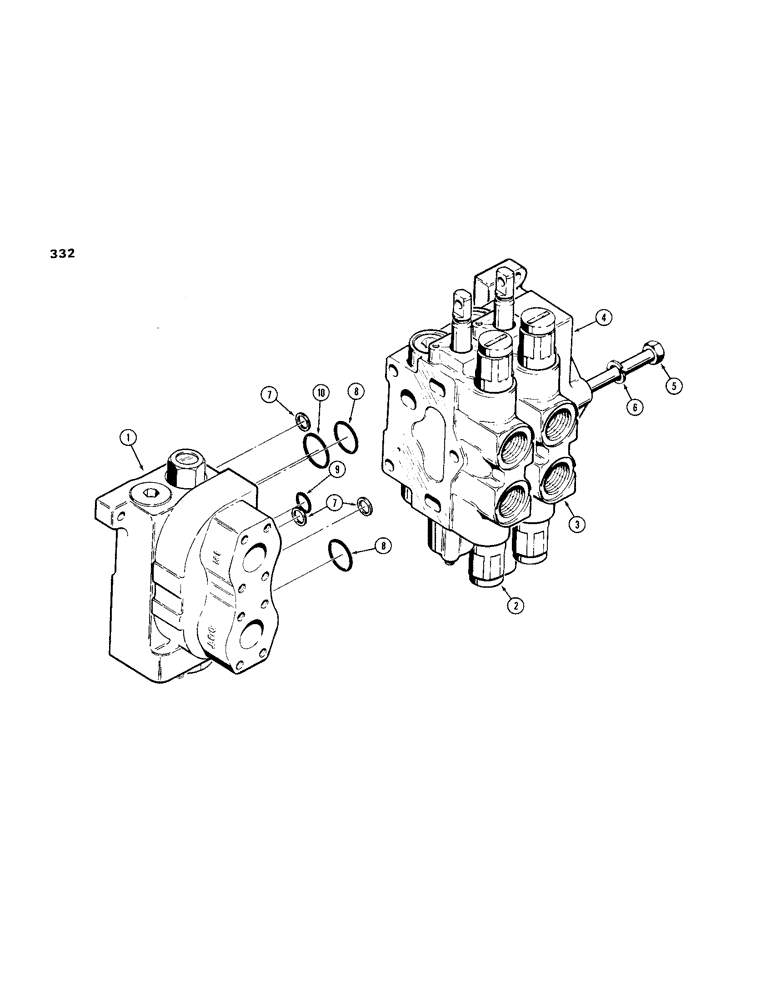

Запчасти Case 1150B (332) - R40900 TWO SPOOL VALVE, LOADER MODEL (07) - HYDRAULIC SYSTEM

R40900

VALVE

ASSEMBLY, Includes: Ref. 1 - 10

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 362

1шт.

2

N6126

VALVE

SECTION - bucket tilt, identification no. 406, parts list Fig. 368

1шт.

3

D87084

VALVE

SECTION - lift, identification no. 308, parts list Fig. 374

1шт.

4

D87072

COVER ASSY

COVER - end

1шт.

5

D74373

BOLT

- tie

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

9шт.

R37003

SEAL KIT

KIT - seal, Includes: Refs. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

R40905

VALVE

ASSEMBLY, Includes: Refs. 1 - 10

1шт.
