Запчасти Case 1150B (332[1]) - R40905 TWO SPOOL VALVE DOZER MODEL (07) - HYDRAULIC SYSTEM

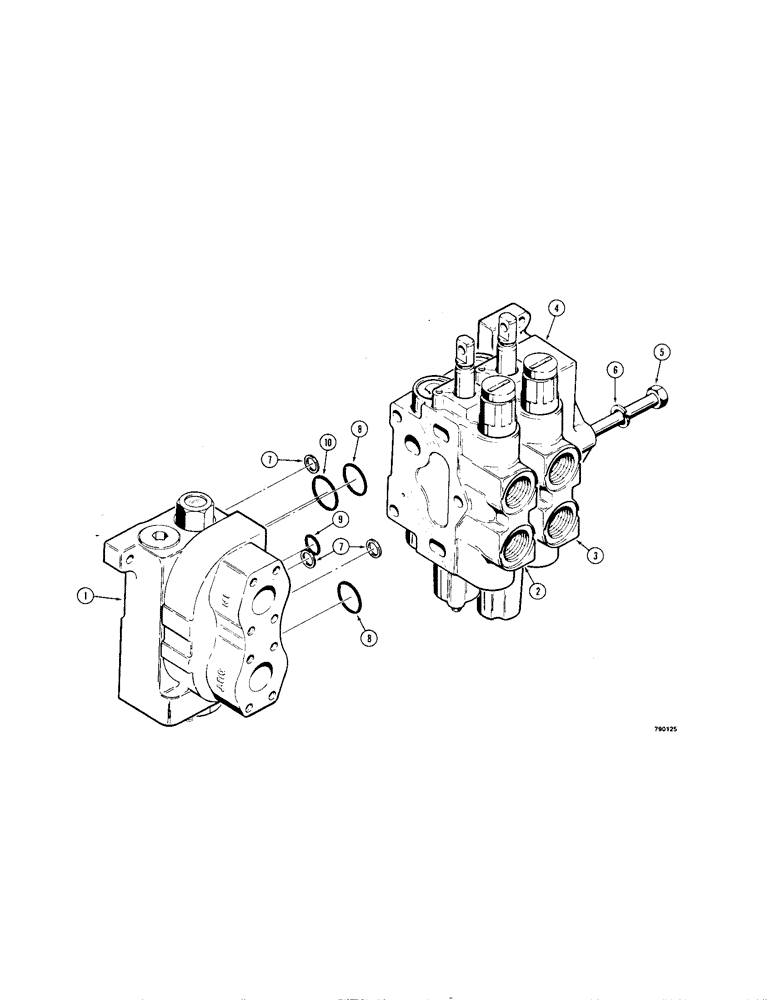

Схема запчастей Case 1150B - (332[1]) - R40905 TWO SPOOL VALVE DOZER MODEL (07) - HYDRAULIC SYSTEM
1
2
5
8
6
10
3
8
7
7
9
4

Артикул

Название

Примечание

Количество

1

D87071

VALVE

SECTION - inlet and outlet, identification no. 106, parts list Fig. 362

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 384

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 388

1шт.

4

D87072

COVER ASSY

COVER - end

1шт.

5

D74373

BOLT

- tie

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

9шт.

R37003

SEAL KIT

KIT - seal, Includes: Refs. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.

Выбрано товаров: 11
