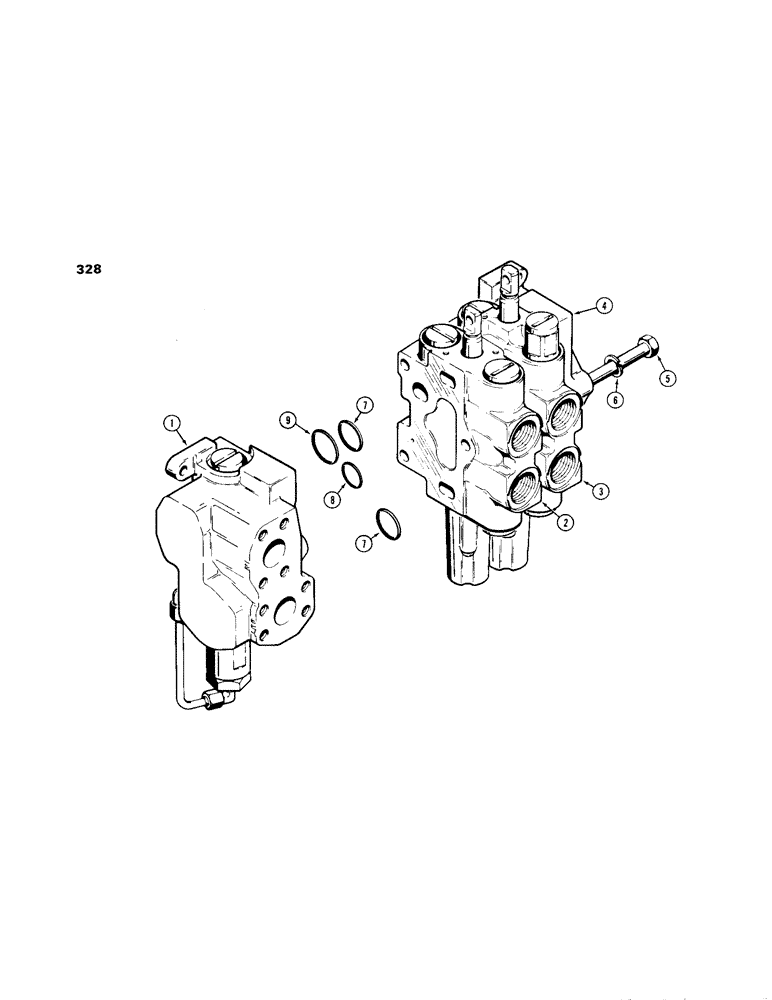

Запчасти Case 1150B (328) - R26131 TWO SPOOL VALVE, TILT DOZER (07) - HYDRAULIC SYSTEM

R26131

VALVE

ASSEMBLY

1шт.

1

R30150

HYD VALVE SECTION

SECTION - inlet and outlet, identification no.004, parts lists Fig. 358

1шт.

1

R38637

SECTOR

SECTION - inlet and outlet, identification no.105, parts lists Fig. 360

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification no.106, parts lists Fig. 362

1шт.

2

R30151

HYD VALVE SECTION

SECTION - dozer tilt, identification no. 204, parts list Fig. 382

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification no. 217, parts list Fig. 384

1шт.

3

R30153

KNIFE SECTION

SECTION - dozer lift, identification no. 302, parts list Fig. 386

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification no. 307, parts list Fig. 388

1шт.

4

R30143

COVER

- end, valve

1шт.

5

D74373

BOLT

- special

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

R37003

SEAL KIT

KIT - valve seal, Includes: Refs. 7 - 9

3шт.

#2 is rh, part 321-4426

1шт.

Valves with metal backed rings or quad rings arae to be serviced with O-rings

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32.05 mm) OD

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1" (25.4 mm) OD

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (36.75 mm) OD

1шт.

R26128

VALVE

- assembly, Includes: Refs. 1 - 9

1шт.
