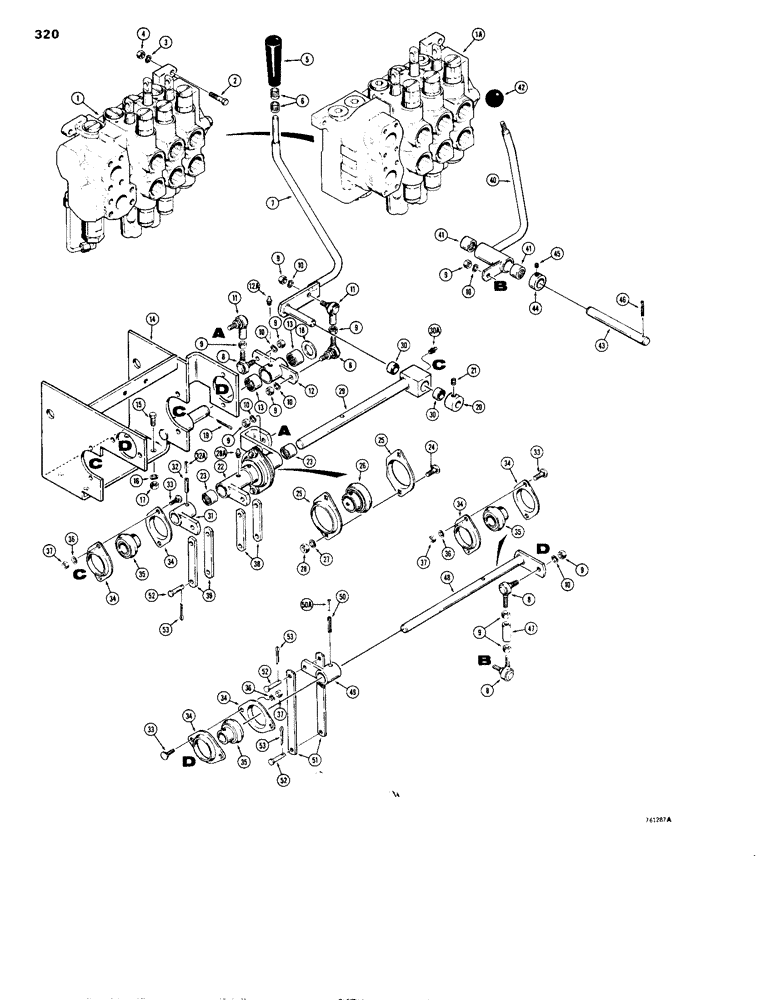

Запчасти Case 1150B (320) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO LEVERS - 3 SPOOL, VALVES ARE STAMPED W/ CASE PART NUMBER (07) - HYDRAULIC SYSTEM

1

R26129

HYDRAULIC VALVE

VALVE - loader with ripper, 4-in-1 bucket or Feller Buncher, parts list Fig. 342

1шт.

1

R33643

LOCK VALVE

VALVE - loader with ripper, 4-in-1 bucket or Feller Buncher, parts list Fig. 344

1шт.

1a

R36053

HYDRAULIC VALVE

VALVE - loader with ripper, 4-in-1 bucket or Feller Buncher, parts list Fig. 346

1шт.

1

R26134

VALVE

- angle tilt pitch dozer, parts list Fig. 334

1шт.

1a

R36058

HYDRAULIC VALVE

VALVE - angle tilt pitch dozer, parts list Fig. 338

1шт.

1

R26132

VALVE - tilt dozer with ripper, parts list Fig. 334

1шт.

1

R33645

VALVE

- tilt dozer with ripper, parts list Fig. 336

1шт.

1a

R36056

SPLIT PIN/SAFETY PIN

- tilt dozer with ripper, parts list Fig. 336

1шт.

1a

R40901

VALVE

- loader with ripper, 4-in-1 bucket or Feller Buncher, parts list Fig. 348

1шт.

1a

R40908

HYDRAULIC VALVE

VALVE - angle tilt pitch dozer, parts list Fig. 340

1шт.

1a

R40906

VALVE

- tilt dozer with ripper, parts list Fig. 340

1шт.

2

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

5

R38654

KNOB

- lever

1шт.

6

R38655

RING

- bushing

2шт.

7

R38652

LEVER

- valve control

1шт.

8

R36625

BALL

JOINT - male

4шт.

9

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

10шт.

10

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

6шт.

11

R36626

BALL

JOINT - female (Replaced R36226)

2шт.

12

R27646

ROCKER

ARM - rocker, Includes: Refs. 12A & 13

1шт.

12a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

13

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

14

R27643

BRACKET

- mounting, shafts

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

20

D43620

COLLAR

- locking

1шт.

21

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

R27341

TUBE

ASSEMBLY - cross, loaders with height and return-to-dig control

1шт.

R27340

TUBE

ASSEMBLY - cross all dozers and loaders without return-to-dig and height control, Includes: Refs. 22 - 28A

1шт.

22

NSS

NOT SOLD SEPARAT

TUBE AND ARM

1шт.

23

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING ASSEMBLY - needle

2шт.

24

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25

NSS

NOT SOLD SEPARAT

FLANGE - bearing

2шт.

26

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - radial ball

1шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

29

R27371

SHAFT

- bellcrank, lower, Includes: Refs. 30 & 30A

1шт.

30

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING ASSEMBLY - needle

2шт.

30a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

31

R27331

ELECTRICAL WIRE

BELLCRANK - link, dozer and loaders without return-to-dig

1шт.

31

REF

INSTRUCTION

BELLCRANK - loaders with return-to-dig, parts list Fig. 314

1шт.

32

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

32a

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

33

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

6шт.

34

F13360

FLANGE

- bearing

6шт.

35

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING ASSEMBLY - radial ball

3шт.

36

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

6шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

38

R27328

LINK

- valve at tube and arm assembly

2шт.

39

R27327

LINK

- valve at bellcrank, 4-9/16" (116 mm) long, if used

2шт.

39

R27328

LINK

- valve at bellcrank, 3-15/16" (100 mm) long, if used

2шт.

40

R25598

LEVER

- valve control, Includes: Ref. 41

1шт.

41

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING ASSEMBLY - needle

2шт.

42

70213

KNOB

- lever

1шт.

43

R27648

SHAFT

- lever

1шт.

44

T10676

COLLAR

- lock

1шт.

45

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

46

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

47

R27647

LINK

- threaded, ball joint

1шт.

48

R27678

SHAFT

- bellcrank, upper

1шт.

49

R27689

LEVER

BELLCRANK - link

1шт.

50

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

50a

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

51

R41322

LINK

- valve, 7-13/32" (188 mm) long, if used

2шт.

51

R27648

SHAFT

LINK - valve, 8-1/16" (205 mm) long, if used

2шт.

52

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

6шт.

53

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

6шт.
