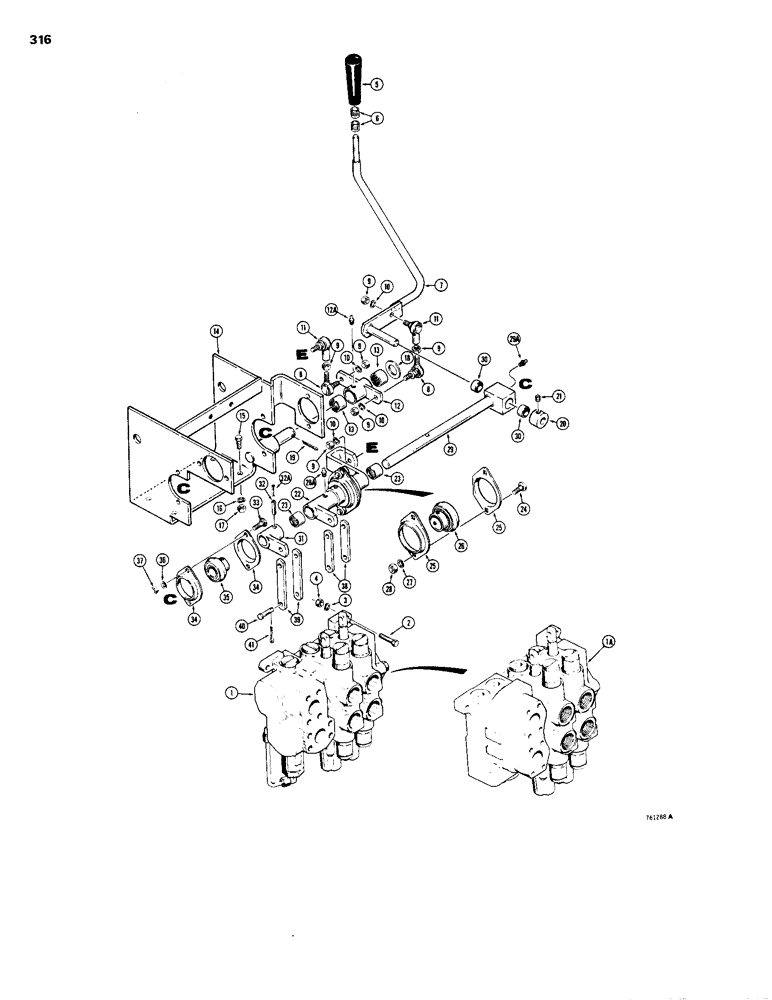

Запчасти Case 1150B (316) - EQUIPMENT CONTROL VALVE AND LEVERS, ONE LEVER - 2 SPOOL VALVES ARE STAMPED W/ CASE PART NUMBER (07) - HYDRAULIC SYSTEM

1

R26128

VALVE

- loader, parts list Fig. 328

1шт.

1a

R36052

VALVE

- loader, parts list Fig. 330

1шт.

1

R26131

VALVE

- tilt dozer, parts list Fig. 328

1шт.

1a

R36055

HYDRAULIC VALVE

VALVE - tilt dozer, parts list Fig. 330

1шт.

1a

R40900

VALVE

- loader, parts list Fig. 332 (1)

1шт.

1a

R40905

VALVE

- tilt dozer, parts list Fig. 332

1шт.

2

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

5

D37550

KNOB

- lever

1шт.

6

D38662

RING

- bushing

2шт.

7

R38652

LEVER

- valve control

1шт.

8

R36625

BALL

JOINT - male

2шт.

9

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

6шт.

10

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

4шт.

11

R36626

BALL

JOINT - female

2шт.

12

R27646

ROCKER

ARM - rocker, Includes: Refs. 12A & 13

1шт.

12a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

13

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

14

R27643

BRACKET

- mounting, shaft

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

20

D43620

COLLAR

- locking

1шт.

21

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

R27341

TUBE

ASSEMBLY - cross, loaders with height control and return-to-dig

1шт.

R27340

TUBE

ASSEMBLY - cross, loaders and dozers, Includes: Ref. 22 - 28A

1шт.

22

NSS

NOT SOLD SEPARAT

TUBE AND ARM

1шт.

23

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING ASSEMBLY - needle

2шт.

24

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25

NSS

NOT SOLD SEPARAT

FLANGE - bearing

2шт.

26

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - ball

1шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

29

R27371

SHAFT

- bellcrank, Includes: Refs. 29A & 30

1шт.

29a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

30

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING ASSEMBLY - needle

2шт.

31

R27331

ELECTRICAL WIRE

BELLCRANK - link, dozer and loaders without return-to-dig and height control

1шт.

31

REF

INSTRUCTION

BELLCRANK - loader with return-to-dig, parts list Fig. 314

1шт.

32

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

32a

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

33

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

34

F13360

FLANGE

- bearing

2шт.

35

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING ASSEMBLY - radial ball

1шт.

36

92-5

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

38

R27328

LINK

- valve at tube and arm assembly

2шт.

39

R27328

LINK

- valve at bellcrank, 3-15/16" (100 mm) long, if used

2шт.

39

R27327

LINK

- valve at bellcrank, 4-7/16" (116 mm) long, if used

2шт.

40

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

41

132-26

COTTER PIN

PIN - Split (Cotter), 3/32" x 3/4"

4шт.
