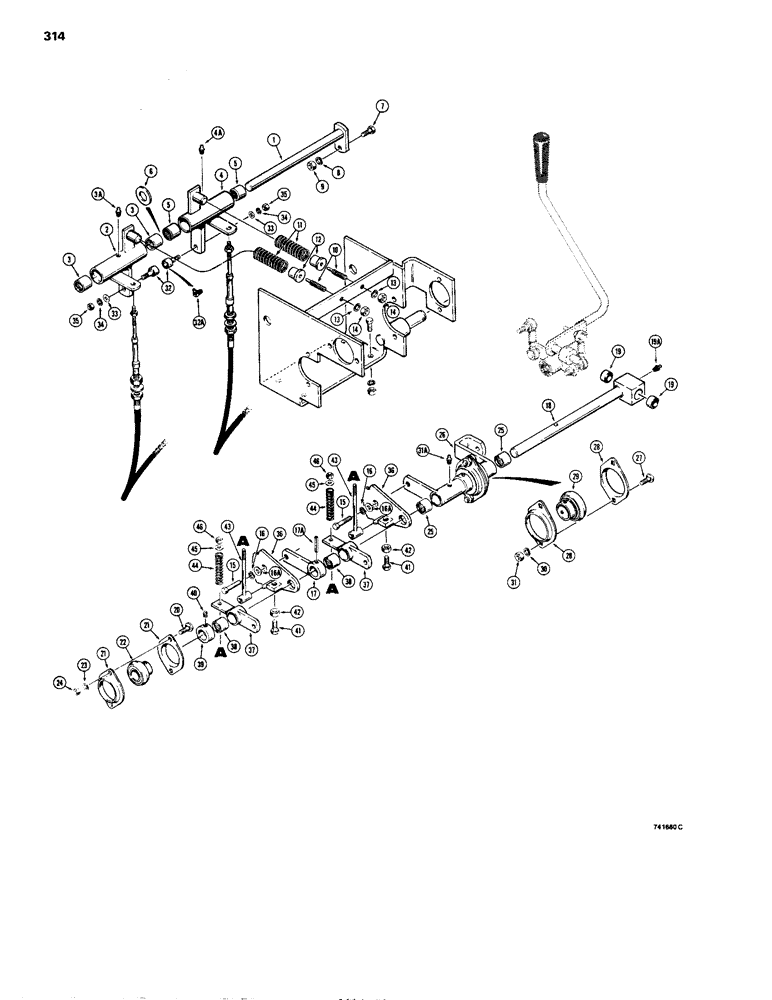

Запчасти Case 1150B (314) - EQUIPMENT CONTROL VALVE AND LEVERS, LOADER RETURN-TO-DIG & HEIGHT CONTROL LINKAGE (07) - HYDRAULIC SYSTEM

1

R28744

SHAFT - rocker arm

1шт.

2

R27537

ROCKER

ARM - rocker, height, Includes: Refs. 3 & 4

1шт.

3

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

4

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

195-45

WASHER,3/4"

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

R27875

SCREW

- special, adjusting

2шт.

11

R27876

SPRING

- detent

2шт.

12

R27817

GUIDE

- spring

2шт.

13

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

16a

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

17

R27867

ARM

BELLCRANK - return-to-dig

1шт.

17a

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

18

R27371

SHAFT

- cam, Includes: Refs. 19 & 19A

1шт.

19

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

BEARING - needle

2шт.

19a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

20

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

21

F13360

FLANGE

- bearing

2шт.

22

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - shaft

1шт.

23

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

R27341

TUBE

ASSEMBLY - cross, Includes: Refs. 25 - 31A

1шт.

25

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

BEARING - needle

2шт.

26

NSS

NOT SOLD SEPARAT

TUBE AND ARM

1шт.

27

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

28

NSS

NOT SOLD SEPARAT

FLANGE - bearing

2шт.

29

NSS

NOT SOLD SEPARAT

BEARING - shaft

1шт.

30

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex, 3/8" - 16 NC

2шт.

31a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

32

R33825

CAM FOLLOWER

FOLLOWER - cam, Includes: Ref. 32A

2шт.

32a

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16" driven

2шт.

33

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

36

R27846

CAM

- link

2шт.

37

R27529

LINK

BELLCRANK ASSEMBLY - valve actuating, Includes: Ref. 38

2шт.

38

R24879

BEARING

- needle

1шт.

39

T10676

COLLAR

- lock

1шт.

40

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

43

R27864

EYE

- spring

2шт.

44

R29624

SPRING

- detent

2шт.

45

195-20

WASHER

- flat, 1/4"

2шт.

46

131-2

NUT,1/4"-20, GB

NUT - hex, self lock, 1/4" - 20 NC

2шт.
