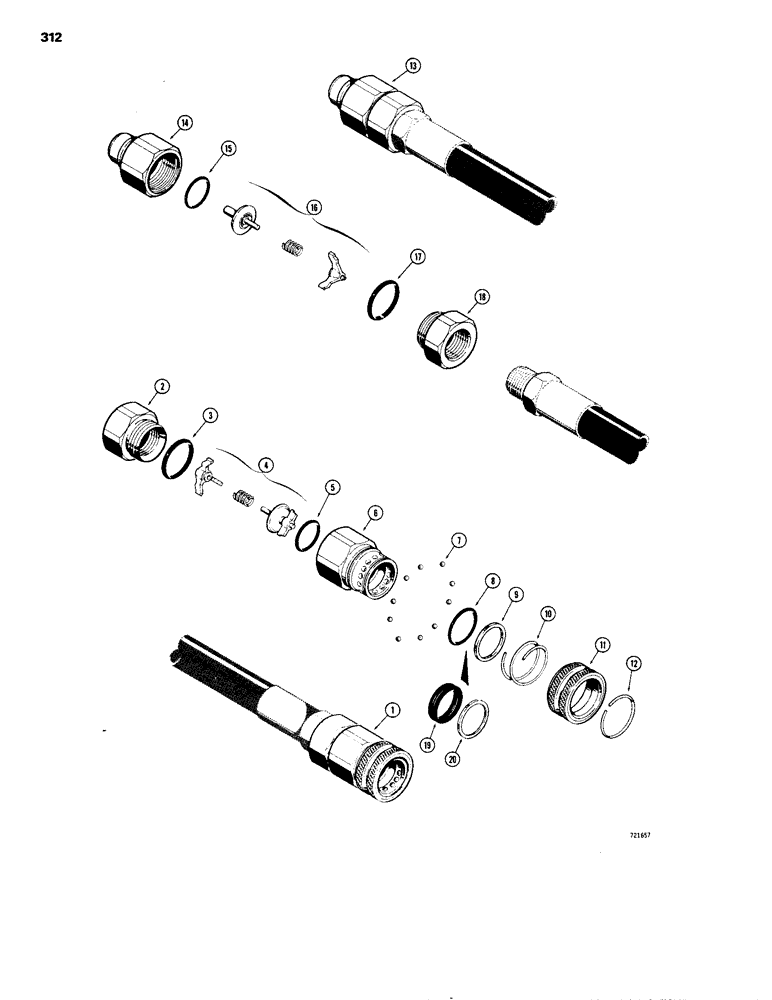

Запчасти Case 1150B (312) - HYDRAULIC QUICK DISCONNECT COUPLINGS, FEMALE COUPLING (07) - HYDRAULIC SYSTEM

1

D31618

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female, use D52800 coupling, Includes: Refs. 2 - 12

4шт.

2

D31975

FITTING

- end

1шт.

3

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting

1шт.

4

D35659

LOCK VALVE

VALVE ASSEMBLY - female

1шт.

Part of Repair Kit, P/N D31456

1шт.

5

D31984

SEAL

- valve

1шт.

6

D31976

BODY - female

1шт.

7

D31982

KIT

BALL KIT - includes 10 balls

1шт.

D42469

SEAL

KIT - seal, Includes: Refs. 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit, P/N D42469

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

Part of Seal Kit, P/N D42469

1шт.

10

D31979

VALVE SPRING

SPRING - sleeve

1шт.

Part of Repair Kit, P/N D31456

1шт.

11

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

12

D31981

RING

- retaining

1шт.

13

D31617

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, use D52800 coupling, Includes: Refs. 14 - 18

4шт.

14

D31971

BODY

- male coupling

1шт.

15

D31984

SEAL

- valve, male coupling

1шт.

16

D35658

VALVE

ASSEMBLY - male coupling

1шт.

Part of Repair Kit, P/N D31456

1шт.

17

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, male coupling

1шт.

18

D31975

FITTING

- end, male coupling

1шт.

D31456

KIT

- repair, coupling, includes 1 each of Refs. 4, 10, 16 and 2 each of Refs. 3 & 5 also Includes: Refs.19 & 20

1шт.

D42469

SEAL

KIT - seal, service, Includes: Refs. 19 & 20

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING, service kit

1шт.

Part of Seal Kit, P/N D42469

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup, service kit

1шт.

Part of Seal Kit, P/N D42469

1шт.
