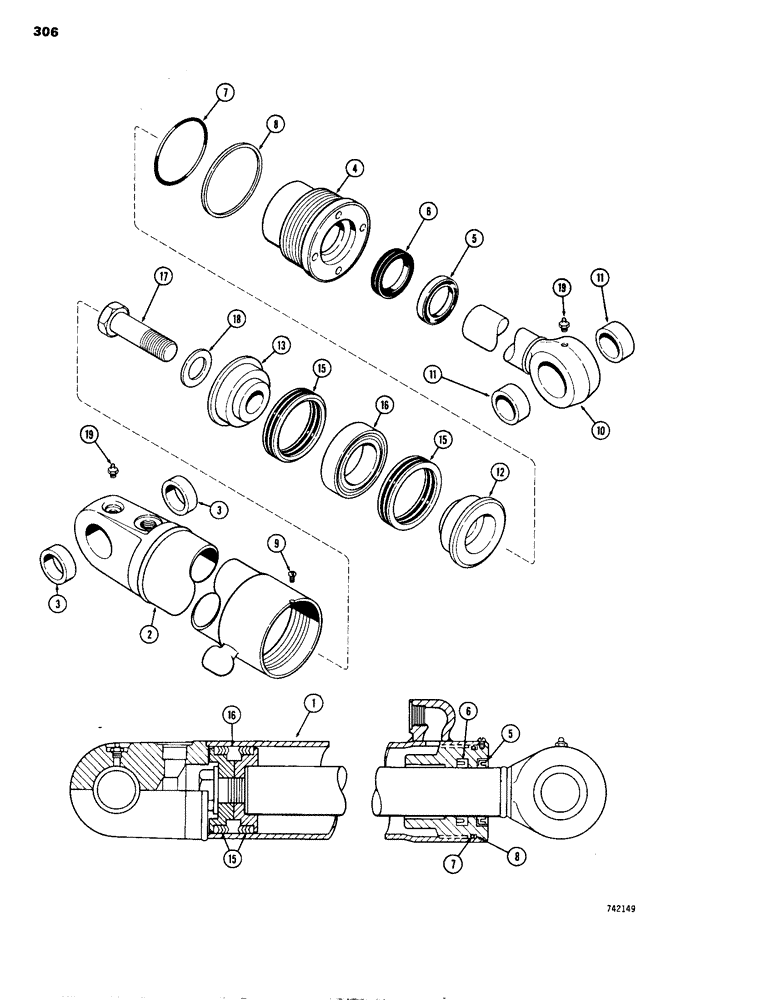

Запчасти Case 1150B (306) - G34530 AND G34531 RIPPER CYLINDER, 3-1/2" (88.9 MM) ID CYLINDER (07) - HYDRAULIC SYSTEM

1

G33998

CYLINDER BLOCK

CYLINDER - ripper, RH, 3-1/2" (88.9 mm) dia. x 10" (254 mm) stroke

1шт.

1

G33999

CYLINDER BLOCK

CYLINDER - ripper, LH, 3-1/2" (88.9 mm) dia. x 10" (254 mm) stroke

1шт.

1

G34530

CYLINDER

- ripper, RH, 3-1/2" dia (88.9) x 10" (254 mm) stroke

1шт.

1

G34531

CYLINDER BLOCK

CYLINDER - ripper, LH, 3-1/2" (88.9 mm) dia. x 10" (254 mm) stroke, Includes: Refs. 2 - 11

1шт.

2

G34104

TUBE,18.75" L

- G33998 and G34530 cylinders

1шт.

2

G34105

TUBE

- G33999 and G34531 cylinders, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G33569

GLAND

ASSEMBLY - use G34623 gland assembly for service - parts list Fig. 284, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - outer

1шт.

Part of seal kit P/N G34631

1шт.

6

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34631

1шт.

Seal - rod, service option - extreme heat or cold (P/N G100777)

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34631

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34631

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G34102

ROD

- piston, 1-3/4" dia.(44.45 mm) G33998 and G33999 cylinders

1шт.

10

G34529

NUT

ROD - piston, 1-3/4" dia (44.45 mm) G34530 and G34531cylinders, Includes: Ref. 11

2шт.

11

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

2шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

1шт.

12

G33520

PISTON

- split, rod end

1шт.

13

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Refs. 15 & 16

1шт.

Part of seal kit P/N G34631

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.
