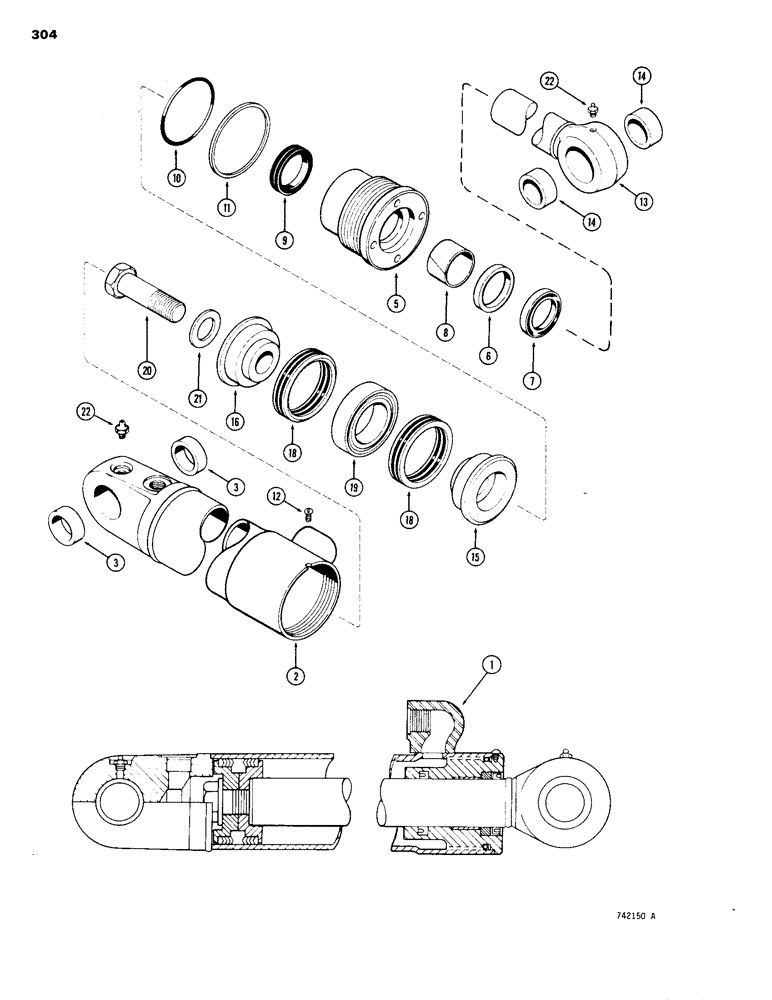

Запчасти Case 1150B (304) - G34530 AND G34531 RIPPER CYLINDERS, GLAND IS STAMPED W/ CYL. PART NUMBER, 3-1/2" ID (88.9 MM) CYL. (07) - HYDRAULIC SYSTEM

1

G34530

CYLINDER

- ripper, RH, 3-1/2" (88.9 mm) dia. x 10" (254 mm) stroke

1шт.

1

G34531

CYLINDER BLOCK

CYLINDER - ripper, LH, 3-1/2" (88.9 mm) dia. x 10" (254 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G34104

TUBE,18.75" L

- G34530 cylinder

1шт.

2

G34105

TUBE

- G34531 cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G34623

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G34600

RING

- center bearing (Replaced NSS)

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G34631

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G34631

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34631

1шт.

Seal - rod, service option - extreme heat or cold (P/N G100777)

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34631

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34631

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 -32 NC x 1/4"

1шт.

13

NLS

NO LONGER SERVICED

ROD - piston, 1-3/4" (44.45 mm) dia., Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G33520

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Ref. 18 & 19

1шт.

Part of seal kit P/N G34631

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G34631

SEAL

KIT - Includes Refs.#s 7 - 11 and G33237

1шт.
