Запчасти Case 1150B (302) - G101266 AND G101267 DOZER ANGLE CYLINDERS, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

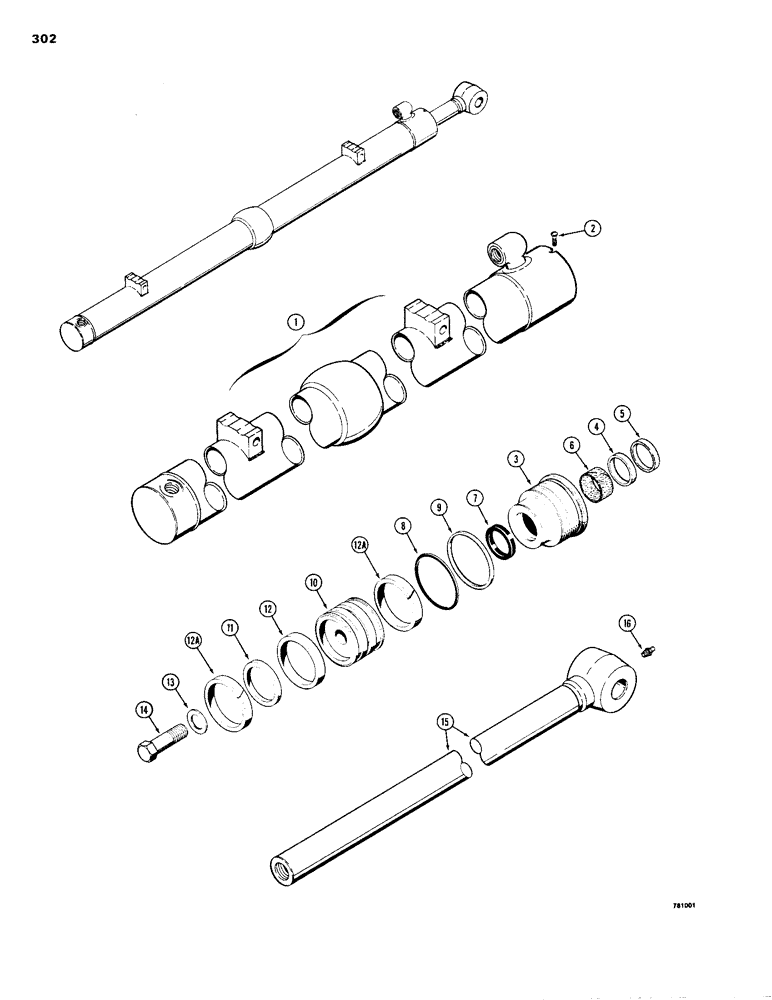

Схема запчастей Case 1150B - (302) - G101266 AND G101267 DOZER ANGLE CYLINDERS, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM
4
13
12a
7
15
6
12
2
1
9
16
11
3
5
12a
10
14
8

Артикул

Название

Примечание

Количество

G101267

CYLINDER

- angle, standard dozer, 3" (76 mm) dia. x 45-7/8" (1165 mm) stroke

2шт.

G101266

CYLINDER ASSY.

CYLINDER - angle, wide track dozer, 3" (76 mm) dia. x 47-7/8" (1165 mm) stroke, Includes: Ref. 1 - 16

2шт.

1

G35385

TUBE,52.84" L

- G101266 cylinder

1шт.

1

G35392

TUBE,52.84" L

- G101267 cylinder

1шт.

2

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

G34633

GLAND

ASSEMBLY, Includes: Refs. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

G34600

RING

- center bearing (Replaced NSS)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G102405

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G102405

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G102405

1шт.

Seal - rod, service option - extreme heat or cold (P/N G100777)

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G102405

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G102405

1шт.

10

G100704

PISTON

1шт.

11

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

Part of seal kit P/N G102405

1шт.

12

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - seal

1шт.

Part of seal kit P/N G102405

1шт.

12a

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G102405

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

14

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

15

G35389

ROD

- piston, 1-3/4" (44 mm) dia.

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G102405

SEAL

KIT - seal, Includes Refs. 5 - 9, 11, 12 & 12A

1шт.

Выбрано товаров: 31
