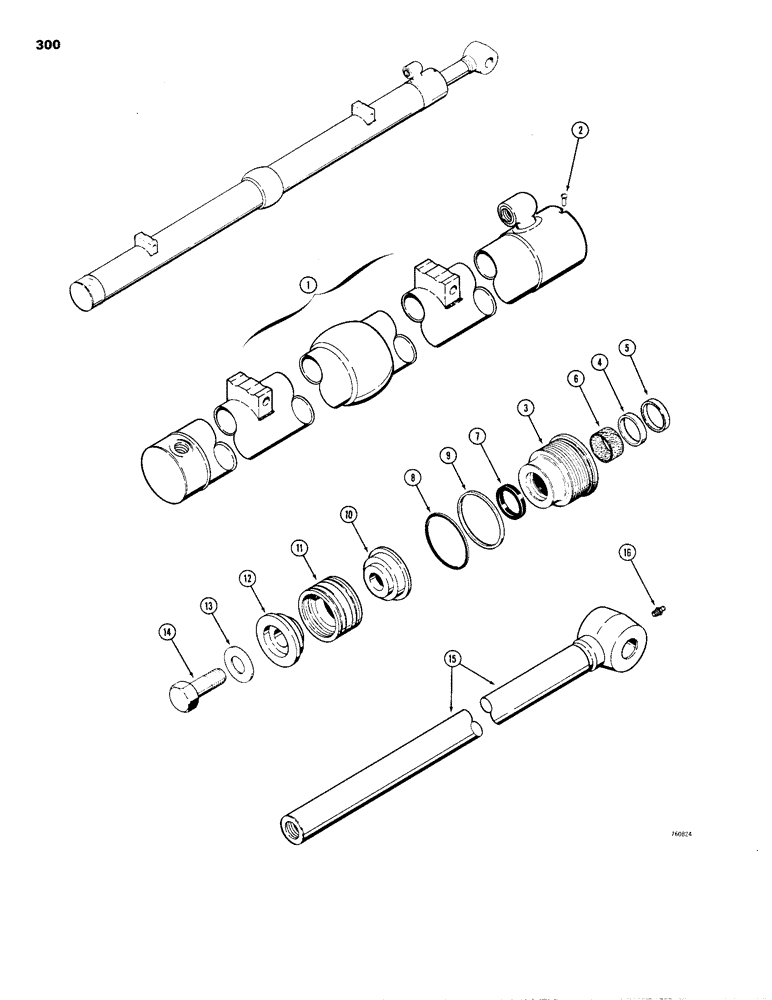

Запчасти Case 1150B (300) - G35383 AND G35384 DOZER ANGLE CYLINDERS, GLAND IS STAMPED W/ CLYINDER PART NUMBER (07) - HYDRAULIC SYSTEM

G35384

HYDRAULIC CYLINDER

CYLINDER - angle, standard dozer, 3" dia (76 mm) x 45-7/8" (165 mm) stroke, order G101267

2шт.

G35383

CYLINDER

- angle, wide track dozer, 3" dia (76 mm) x 47-7/8" (1165 mm) stroke, order G101266, Includes: Refs. 1 - 16

2шт.

1

G35385

TUBE,52.84" L

- G35383 cylinder

1шт.

1

G35392

TUBE,52.84" L

- G35384 cylinder

1шт.

2

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

G34633

GLAND

ASSEMBLY, Includes: Refs. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

G34600

RING

- center bearing (Replaced NSS)

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G34643

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G34643

1шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34643

1шт.

Seal - rod, service option - extreme heat or cold (P/N G100777)

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34643

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34643

1шт.

10

G33331

PISTON

- rod half

1шт.

11

G33151

PACKING

ASSEMBLY - piston

1шт.

Part of seal kit P/N G34643

1шт.

12

D28896

PISTON

- bolt half

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

14

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

15

G35389

ROD

- piston, 1-3/4" (44.45 mm) dia.

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34643

GASKET KIT

KIT - seal, Includes Refs. 5 - 9 & 11

1шт.
