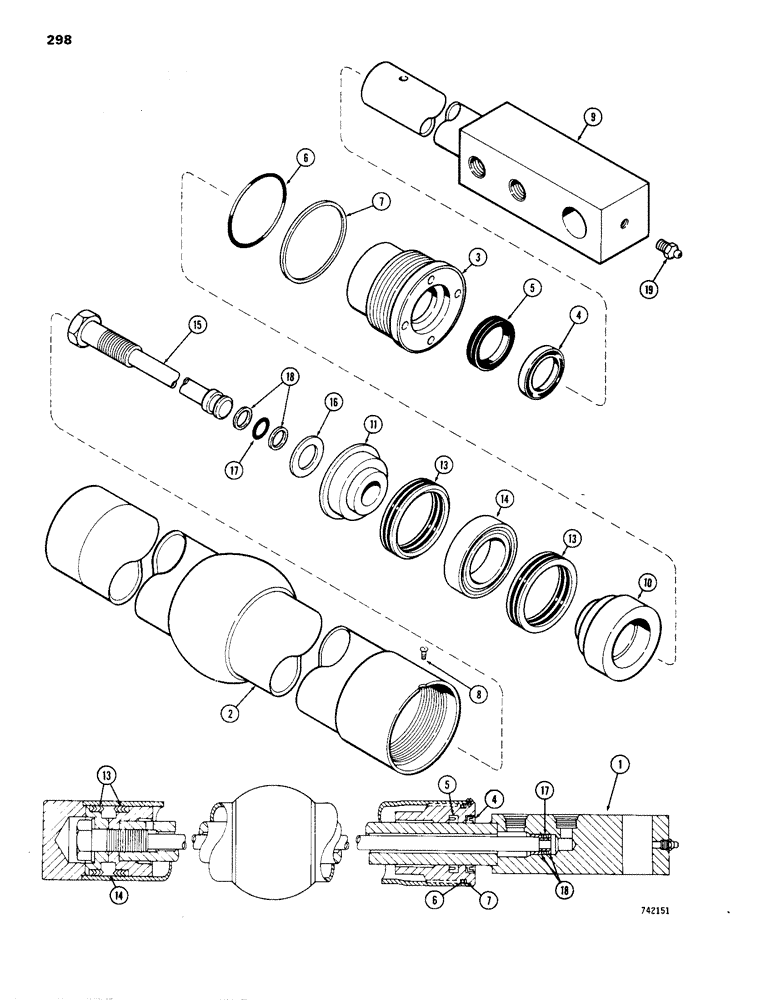

Запчасти Case 1150B (298) - G33936 & G33937 DOZER ANGLE CYLINDERS, GLAND HAS I.D. RING (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
G33937
CYLINDER
3004CYLINDER - angle, standard track dozer, 3" dia. (76.2 mm) x 45-7/8" (1165.35 mm) stroke
2шт.
1
G33936
CYLINDER
- angle, wide track dozer, 3" dia. (76.2 mm) x 45-7/8" (1165.35 mm) stroke, Includes: Refs. 2 - 19
2шт.
2
G34234
TUBE
- G33937 cylinder
1шт.
2
G34209
TUBE
- G33936 cylinder
1шт.
G33570
GLAND
ASSEMBLY - Use G34633 gland assembly for service - parts list Fig. 296, Includes: Refs. 3 - 7
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND AND BUSHING
1шт.
4
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - piston rod, outer
1шт.
Part of seal kit P/N G34634
1шт.
5
D36970
CUP
SEAL - piston rod
1шт.
Part of seal kit P/N G34634
1шт.
Seal - rod, service option - extreme heat or cold (P/N G100777)
1шт.
6
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
1шт.
Part of seal kit P/N G34634
1шт.
7
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup
1шт.
Part of seal kit P/N G34634
1шт.
8
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, no. 8 - 32 NC x 1/4"
1шт.
9
G34207
ROD
- piston, 1-3/4" (44.45 mm) dia.
1шт.
10
G34112
PISTON
- split, rod end
1шт.
11
D28896
PISTON
- split, bolt end
1шт.
G33151
PACKING
- piston, Includes: Refs. 13 & 14
1шт.
Part of seal kit P/N G34634
1шт.
13
NSS
NOT SOLD SEPARAT
PACKING - V-type
2шт.
14
NSS
NOT SOLD SEPARAT
RING - center bearing
1шт.
15
G34106
TUBE
- piston, inner
1шт.
16
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- tube
1шт.
17
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
1шт.
Part of seal kit P/N G34634
1шт.
18
G32626
RING
- backup
2шт.
Part of seal kit P/N G34634
1шт.
19
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
1шт.
G34634
SEAL
KIT - Includes Refs. 4 - 7, G33151, 17 & 18
1шт.
G100777
SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk
- rod, service option - extreme heat or cold
1шт.
Выбрано товаров: 32
