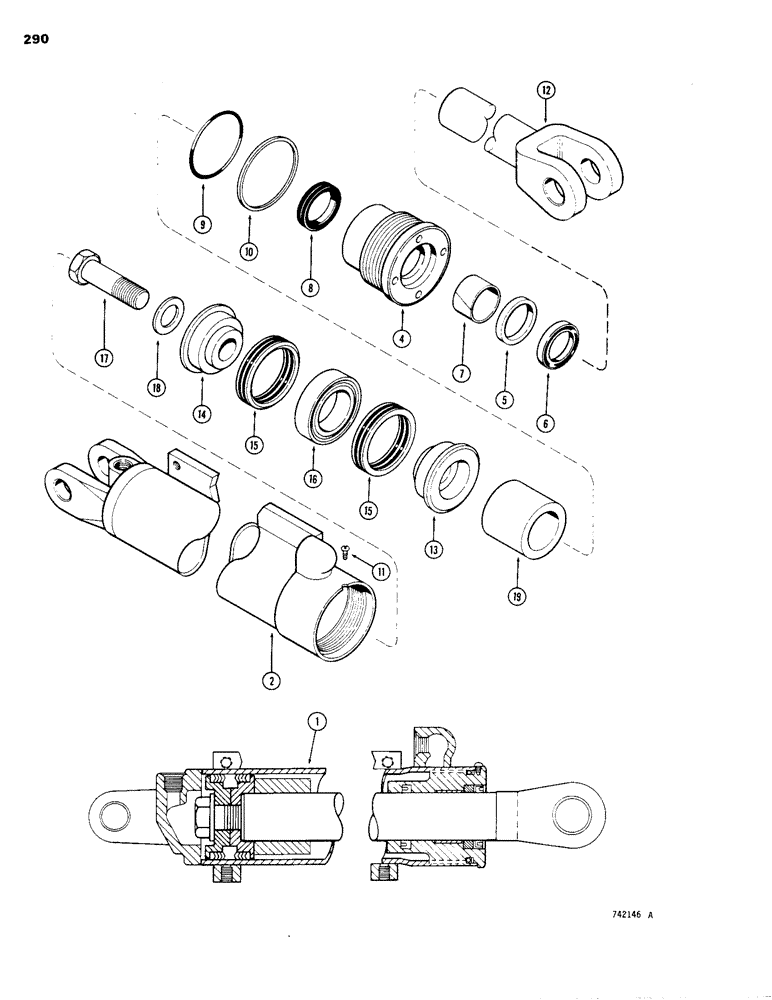

Запчасти Case 1150B (290) - G33938 & G33939 DOZER TILT & PITCH CYLS., ANGLE TILT PITCH DOZER, GLAND IS STAMPED W/ CYL. PART # (07) - HYDRAULIC SYSTEM

1

G33939

CYLINDER

- LH tilt and pitch, 4" (101.6 mm) dia x 5-1/4" (133.35 mm) stroke, order G101269

1шт.

1

G33938

CYLINDER

- RH tilt and pitch, 4" (101.6 mm) dia x 5-1/4" (133.35 mm) stroke, order G101268, Includes: Refs. 2 - 19

1шт.

2

G34058

TUBE

- G33938 cylinder

1шт.

2

G34059

TUBE

- G33939 cylinder

1шт.

G34635

GLAND

ASSEMBLY, Includes: Refs. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G34636

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

Part of seal kit P/N G34636

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod

1шт.

Part of seal kit P/N G34636

1шт.

Seal - rod, service option - extreme heat or cold (P/N G100779)

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34636

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit P/N G34636

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34054

ROD

- piston, 2-1/4" (57.15 mm) dia.

1шт.

13

D49168

PISTON

- split, rod end

1шт.

14

D46930

PISTON

- split, bolt end

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

- V-type

2шт.

Part of seal kit P/N G34636

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

G34056

BUSHING

SPACER

1шт.

G34636

SEAL

KIT - Includes Refs. 6 - 10 & 15

1шт.
