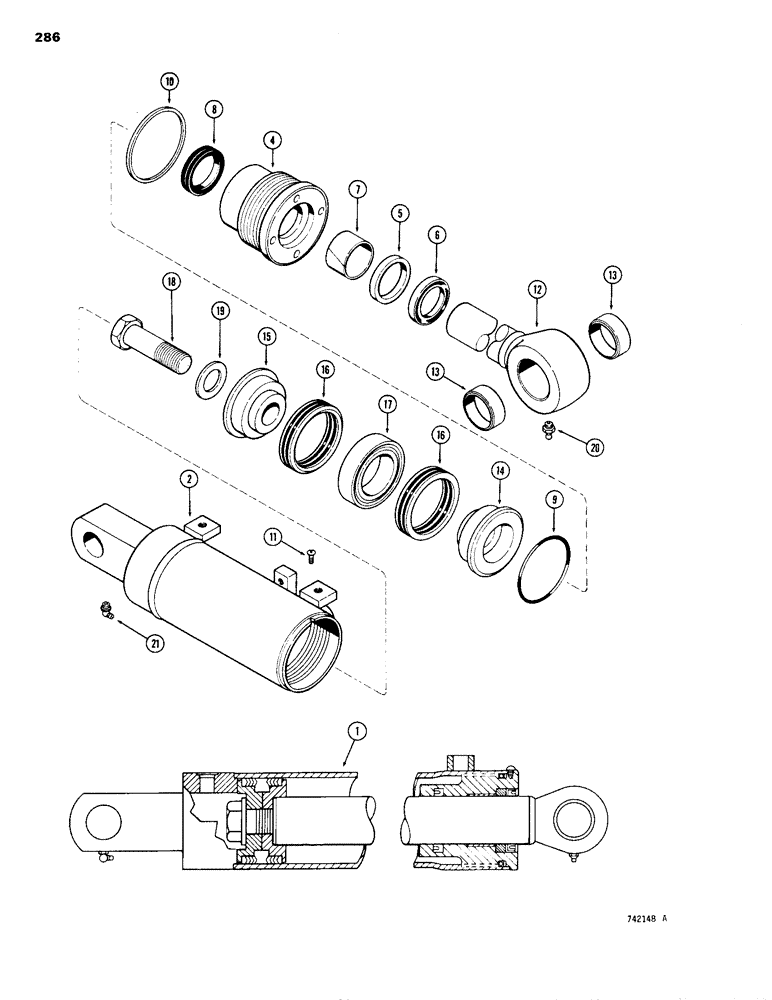

Запчасти Case 1150B (286) - G33933 DOZER TILT CYLINDER, TILT DOZER, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G33933

CYLINDER BLOCK

CYLINDER - tilt, 4-1/2" (114.3 mm) dia. x 5" (127 mm) stroke, Includes: Refs. 2 - 21

2шт.

2

G34063

TUBE

- cylinder body

1шт.

G34632

GLAND

ASSEMBLY, Includes: Refs. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G34628

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

Part of seal kit P/N G34628

1шт.

8

D39359

RUBBER SEAL

SEAL - piston rod

1шт.

Part of seal kit P/N G34628

1шт.

Seal - rod, service option - extreme heat or cold

1шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34628

1шт.

10

G32284

BACK-UP RING

- backup

1шт.

Part of seal kit P/N G34628

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

ROD - piston, 2-1/4" (57 mm) dia., Includes: Refs. 13

1шт.

12

G34061

ROD

- piston, 2-1/4" (57 mm) dia., Includes: Refs. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

D46425

PISTON

- split, rod end

1шт.

15

D46931

PISTON

- split, bolt end

1шт.

16

D47205

PACKING

- V-type

2шт.

Part of seal kit P/N G34628

1шт.

17

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34628

SEAL

KIT - Includes Refs. 6 - 10 and 16

1шт.
