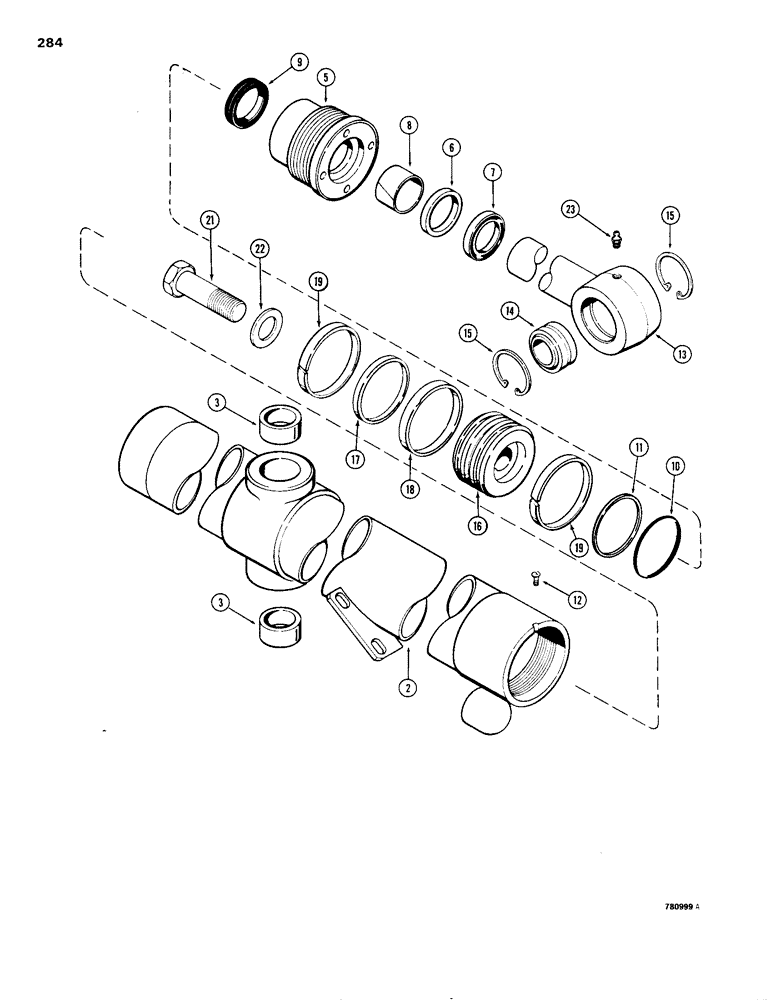

Запчасти Case 1150B (284) - G101270 & G101271 DOZER LIFT CYLINDERS, ANGLE TILT PITCH DOZER, GLAND IS STAMPED W/ CYLINDER PART # (07) - HYDRAULIC SYSTEM

1

G101270

CYLINDER

- RH lift, 3-1/2" (89 mm) dia. x 36-3/4" (933 mm) stroke

1шт.

1

G101271

CYLINDER

- LH lift, 3-1/2" (89 mm) dia. x 36-3/4" (933 mm) stroke, Includes: Refs. 2 - 23

1шт.

2

G34080

CYLINDER,43.83" L

TUBE - G101270 cylinder

1шт.

2

G34081

TUBE,43.83" L

- G101271 cylinder, Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G34623

GLAND

ASSEMBLY, Includes: Refs. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G34600

RING

- center bearing (Replaced NSS)

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G101296

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G101296

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G101296

1шт.

Seal - rod, service option - extreme heat or cold

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G101296

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of seal kit P/N G101296

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G34078

PISTON

ROD - piston, 1-3/4" (44 mm) dia., Includes: Refs. 14 & 15

1шт.

14

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- piston rod, self-aligning

1шт.

15

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

16

G100698

PISTON

1шт.

17

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

Part of seal kit P/N G101296

1шт.

18

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- seal

1шт.

Part of seal kit P/N G101296

1шт.

19

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of seal kit P/N G101296

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

1543261C1

SEAL KIT

SEAL KIT - Includes Refs. 7 - 11, 17, 18 & 19 (Replaced G101296) (Replaced G102410 )

1шт.
