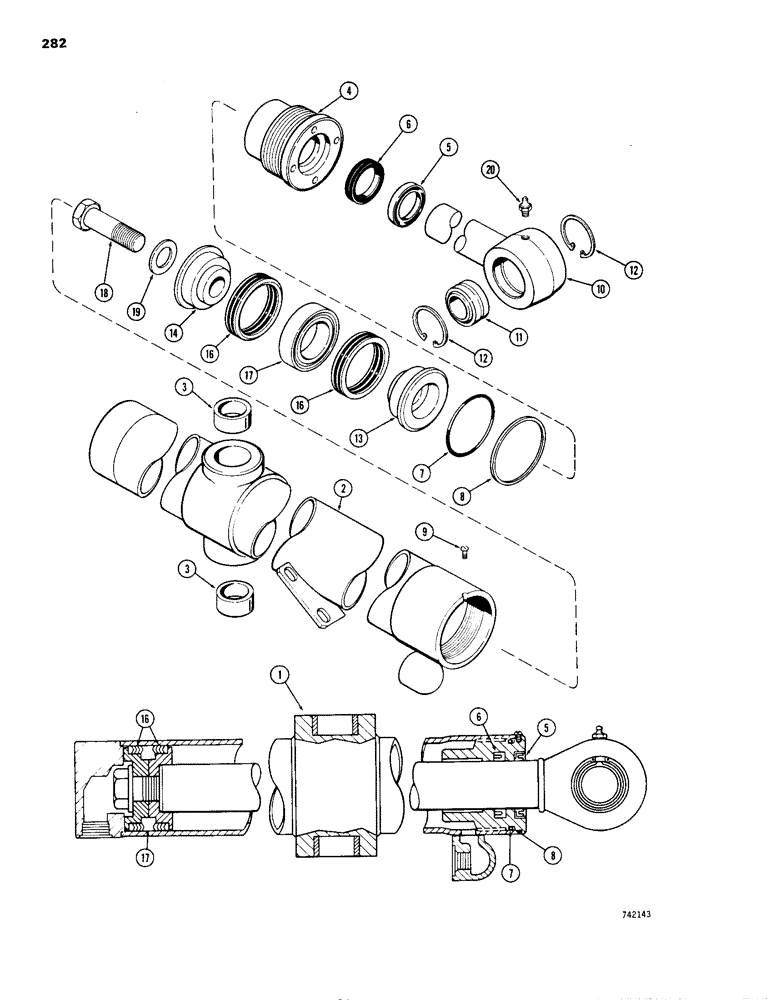

Запчасти Case 1150B (282) - G33940 AND G33941 DOZER LIFT CYLINDERS, ANGLE TILT PITCH DOZER, GLAND I.D. RING (07) - HYDRAULIC SYSTEM

1

G33940

CYLINDER

- RH lift, 3-1/2" (88.9 mm) dia. x 36-3/4" (933.45 mm) stroke, order G101270

1шт.

1

G33941

CYLINDER

- LH lift, 3-1/2" (88.9 mm) dia. x 36-3/4" (933.45 mm) stroke, order G101271, Includes: Refs. 2 - 20

1шт.

2

G34080

CYLINDER,43.83" L

TUBE - G33940 cylinder

1шт.

2

G34081

TUBE,43.83" L

- G33941 cylinder, Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G33569

GLAND

ASSEMBLY - use G34623 gland, parts list Fig. 280, Includes: Ref.4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34631

1шт.

6

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34631

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34631

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34631

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G34078

PISTON

ROD - piston, 1-3/4" (44.45 mm) dia., Includes: Refs. 11 & 12

1шт.

11

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- self-aligning

1шт.

12

A10506

SNAP RING,2.44", Int, #244

RING, Snap, 2.44", Int, #244

2шт.

13

G33520

PISTON

- split, rod end

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Refs. 16 & 17

1шт.

Part of seal kit P/N G34631

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34631

SEAL

KIT - Includes Refs. 5 - 8 and G33237

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - extreme heat or cold

1шт.
