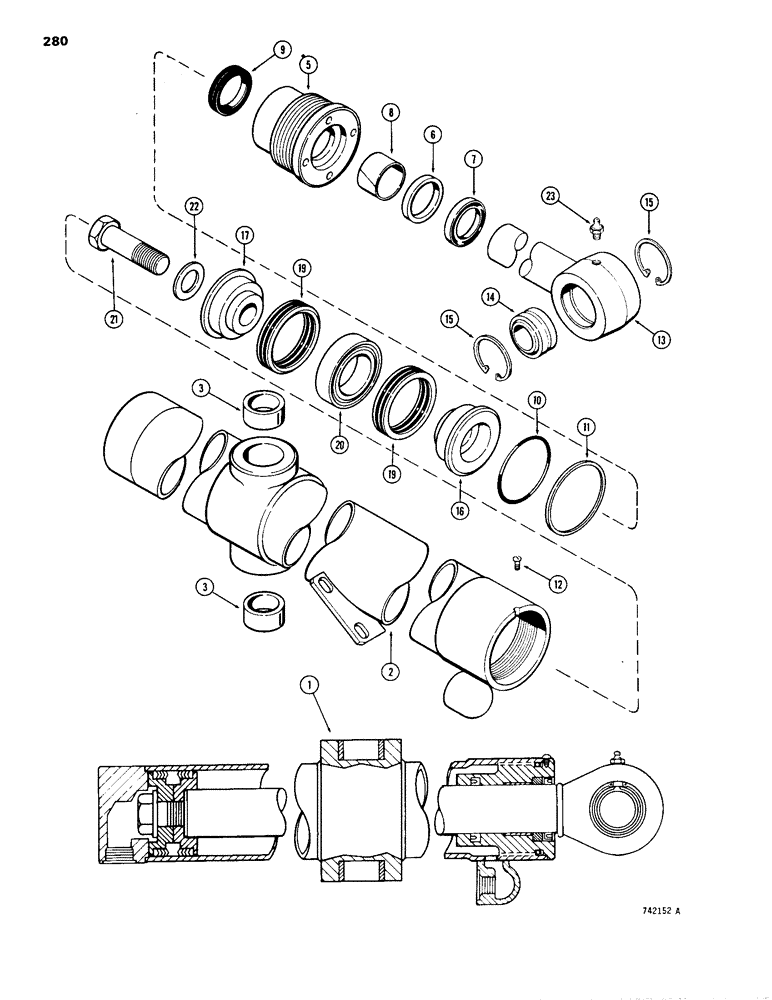

Запчасти Case 1150B (280) - G33940 AND G33941 DOZER LIFT CYLINDERS, ANGLE TILT PITCH DOZER, GLAND IS STAMPED W/ CYLINDER PART # (07) - HYDRAULIC SYSTEM

1

G33940

CYLINDER

- RH lift, 3-1/2" (88.9 mm) dia. x 36-3/4" (933.45 mm) stroke, order G101270

1шт.

1

G33941

CYLINDER

- LH lift, 3-1/2" (88.9 mm) dia. x 36-3/4" (933.45 mm) stroke, order G101271, Includes: Refs. 2 - 23

1шт.

2

G34080

CYLINDER,43.83" L

TUBE - G33940 cylinder

1шт.

2

G34081

TUBE,43.83" L

- G33941 cylinder, Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G34623

GLAND

ASSEMBLY - Includes: Refs. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

G34600

RING

- center bearing (Replaced NSS)

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G34631

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G34631

1шт.

9

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34631 and P/N G100779

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34631

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34631

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G34078

PISTON

ROD - piston, 1-3/4" (44.45 mm) dia., Includes: Refs. 14 & 15

1шт.

14

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

- self-aligning

1шт.

15

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

16

G33520

PISTON

- split, rod end

1шт.

17

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Refs. 19 & 20

1шт.

Part of seal kit P/N G34631

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

20

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

21

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34631

SEAL

KIT - Includes Refs. 7 - 11 and G33237

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - extreme heat or cold

1шт.
