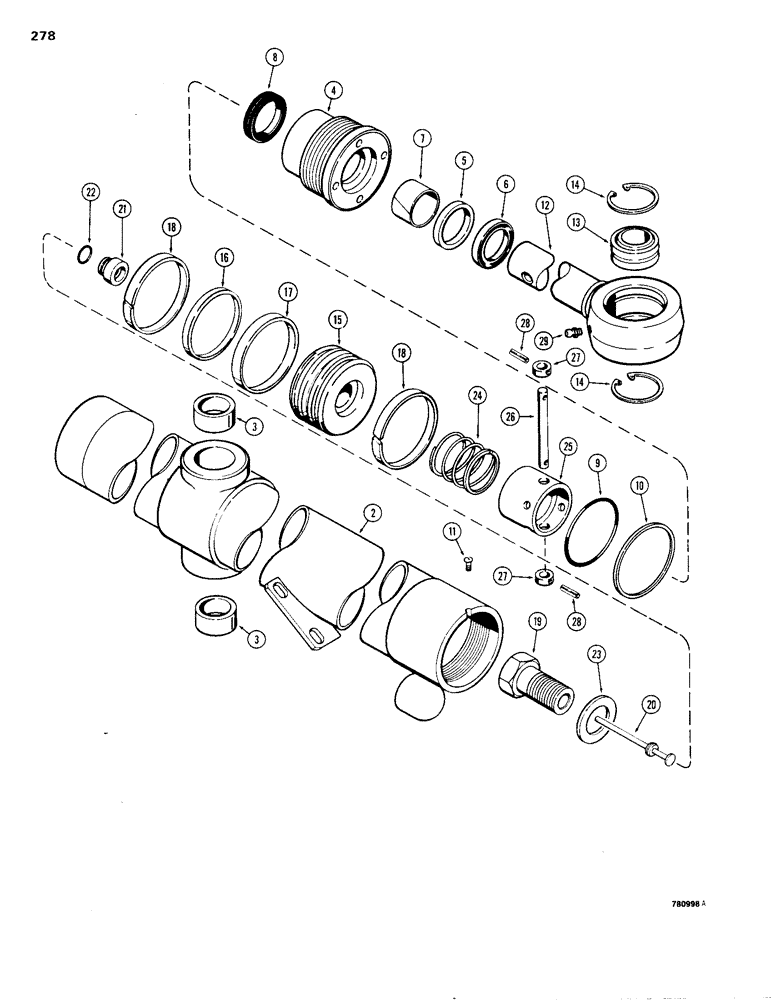

Запчасти Case 1150B (278) - G101264 AND G101265 DOZER LIFT CYLINDERS, G103102 & G103103 DOZER LIFT CYLINDERS, TILT DOZER (07) - HYDRAULIC SYSTEM

1

G101264

CYLINDER

- RH lift, 3-1/2" (89 mm) dia. x 39-1/4" (997 mm) stroke, order G103102

1шт.

1

G101265

CYLINDER

- LH lift, 3-1/2" (89 mm) dia. x 39-1/4" (997 mm) stroke, order G103103

1шт.

1

G103102

CYLINDER

- RH lift, 3-1/2" (89 mm) dia. x 39-1/4" (997 mm) stroke

1шт.

1

G103103

CYLINDER

- LH lift, 3-1/2" (89 mm) dia. x 39-1/4" (997 mm) stroke, Includes: Refs. 2 - 29

1шт.

2

G34070

TUBE,48.54" L

- G101264 cylinder

1шт.

2

G34071

TUBE

- G101265 cylinder, Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G34623

GLAND

ASSEMBLY - Includes: Refs. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

G34600

RING

- center bearing (Replaced NSS)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G101296

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G101296

1шт.

8

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G101296 and P/N G100779

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G101296

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34074

PISTON

ROD - piston, 1-3/4" dia. (44 mm), Includes: Refs. 13 & 14

1шт.

13

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

- self-aligning

1шт.

14

F61018

SNAP RING,M73, Int

Ring, Snap, 2.812", Int, #281

2шт.

15

G100696

PISTON

- split (Replaced G100698)

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

Part of seal kit P/N G101296

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- seal

1шт.

Part of seal kit P/N G101296

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of seal kit P/N G101296

1шт.

G103099

LOCK VALVE

VALVE ASSEMBLY - bypass, Includes: Refs. 19 - 22

1шт.

19

G32723

BOLT

- special

1шт.

20

G102827

SPOOL

STEM - valve plunger

1шт.

21

G32722

BUSHING

- plunger stem seat

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

1шт.

23

G32351

WASHER

- hardened

1шт.

24

G101523

SPRING

1шт.

25

G100086

BLOCK

- stop

1шт.

26

G100087

PIN

1шт.

27

G34976

BUSHING

COLLAR - bypass valve

2шт.

28

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

1543261C1

SEAL KIT

SEAL KIT - Includes Refs. 6 - 9, 16, 17 and 18 (Replaced G101296)(Replaced G102410 )

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.
