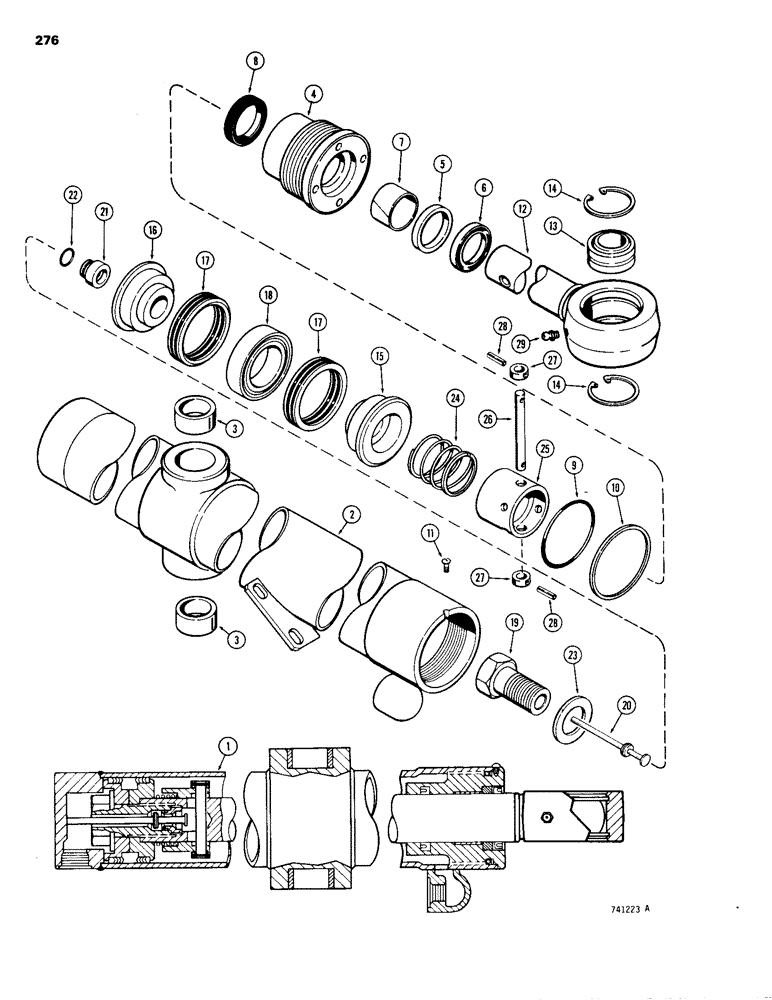

Запчасти Case 1150B (276) - G100085 AND G100084 DOZER LIFT CYLINDERS, TILT DOZER, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G100084

CYLINDER BLOCK

CYLINDER - RH lift, 3-1/2" (88.9 mm) dia. x 39-1/4" (996.95 mm) stroke order G103102 cylinder

1шт.

1

G100085

CYLINDER

- LH lift, 3-1/2" (88.9 mm) dia. x 39-1/4" (996.95 mm) stroke order G103103 cylinder, Includes: Refs. 2 - 29

1шт.

2

G34070

TUBE,48.54" L

- G100084 cylinder

1шт.

2

G34071

TUBE

- G100085 cylinder, Includes: Ref. 3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G34623

GLAND

ASSEMBLY- Includes: Refs. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

G34600

RING

- center bearing (replaced NSS)

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G34631

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of seal kit P/N G34631

1шт.

8

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34631and P/N G100779

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34631

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G34074

PISTON

ROD - piston, 1-3/4" (44 mm) dia, Includes: Refs. 13 & 14

1шт.

13

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

- self-aligning

1шт.

14

F61018

SNAP RING,M73, Int

RING, Snap, 2.812", Int, #281

2шт.

15

G33525

PISTON

- split, rod end

1шт.

16

D46388

PISTON

- split, bolt end

1шт.

G33237

PACKING

ASSEMBLY - piston, Includes: Refs. 17 & 18

1шт.

Part of seal kit P/N G34631

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

G34972

VALVE

ASSEMBLY - bypass, Includes: Refs. 19 - 22

1шт.

19

G32723

BOLT

- special

1шт.

20

G34973

STEM - valve plunger

1шт.

21

G32722

BUSHING

- plunger stem seat

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

1шт.

23

G32351

WASHER

- hardened

1шт.

24

G101523

SPRING

1шт.

25

G100086

BLOCK

- stop

1шт.

26

G100087

PIN

1шт.

27

G34976

BUSHING

COLLAR - bypass valve

2шт.

28

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34631

SEAL

KIT - Includes Refs. 6, 7, 8, 9 and G33237

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold

1шт.
