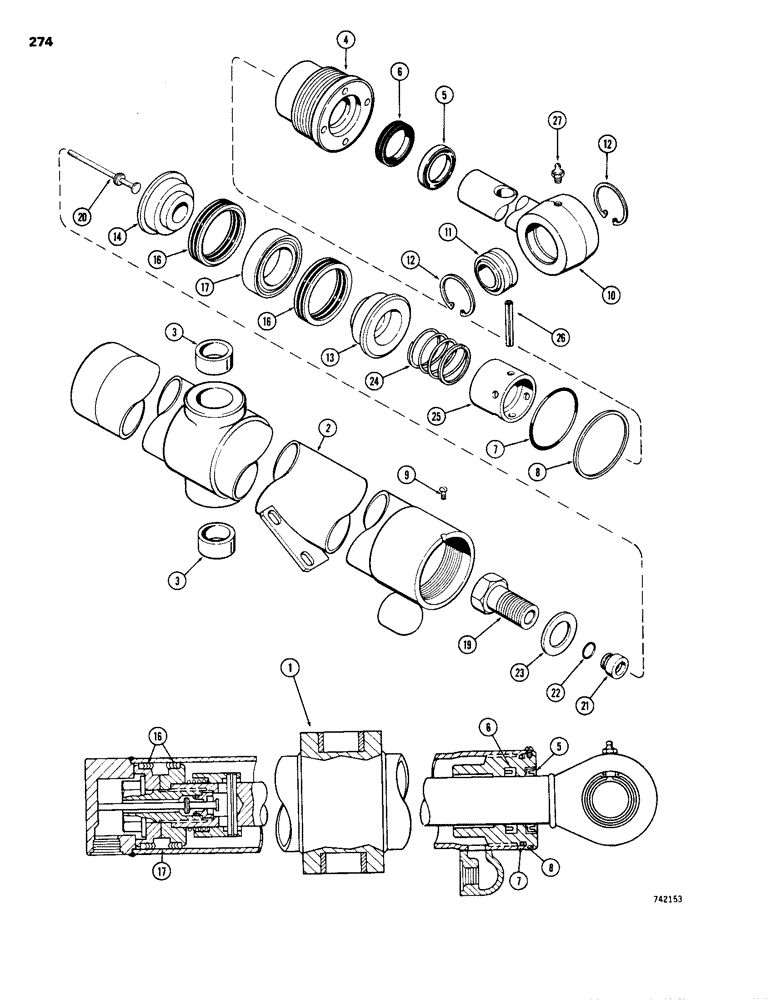

Запчасти Case 1150B (274) - G33934 AND G33935 DOZER LIFT CYLINDERS, TILT DOZER, GLAND HAS I.D. RING (07) - HYDRAULIC SYSTEM

1

G33934

CYLINDER - RH lift, 3-1/2" (88.9 mm) dia. x 39-1/4" (996.95 mm) stroke, order G103102 cylinder

1шт.

1

G33935

CYLINDER - LH lift, 3-1/2" (88.9 mm) dia. x 39-1/4" (996.95 mm) stroke order G103103 cylinder, Includes: Ref.#2 - 27

1шт.

2

G34070

TUBE,48.54" L

- G33934 cylinder

1шт.

2

G34071

TUBE

- G33935 cylinder, Includes: Ref.#3

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- tube trunnion

2шт.

G33569

GLAND

ASSEMBLY - use G34623 gland, parts list Fig. 276, Includes: Refs. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34631

1шт.

6

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34631and P/N 100779

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34631

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34631

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G34074

PISTON

ROD - piston, 1-3/4" (44mm) dia., Includes: Ref.# 11 & 12

1шт.

11

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

- self aligning

1шт.

12

F61018

SNAP RING,M73, Int

Ring, Snap, , brg 2.812", Int, #281

2шт.

13

G33525

PISTON

- split, rod end

1шт.

14

D46388

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Ref.#16 & 17

1шт.

Part of seal kit P/N G34631

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

G34972

VALVE

ASSEMBLY - bypass, Includes: Ref.#19 - 22

1шт.

19

G32723

BOLT

- valve body and retainer

1шт.

20

G34973

STEM - valve plunger

1шт.

21

G32722

BUSHING

- plunger stem seat

1шт.

22

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

1шт.

23

G32351

WASHER

- hardened

1шт.

24

G101523

SPRING

- cushion

1шт.

25

G34118

BLOCK

- stop, use (2) G34976 collars, (2) 138-55 pins, G100086 block and G100087 pin for service - Fig. 276

1шт.

26

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Stop block 3/8" x 2 1/2", Slotted

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34631

SEAL

KIT - Includes Refs. 5, 6, 7, 8 and G33237

1шт.

100777

SEAL - rod, service option - extreme heat or cold

1шт.
