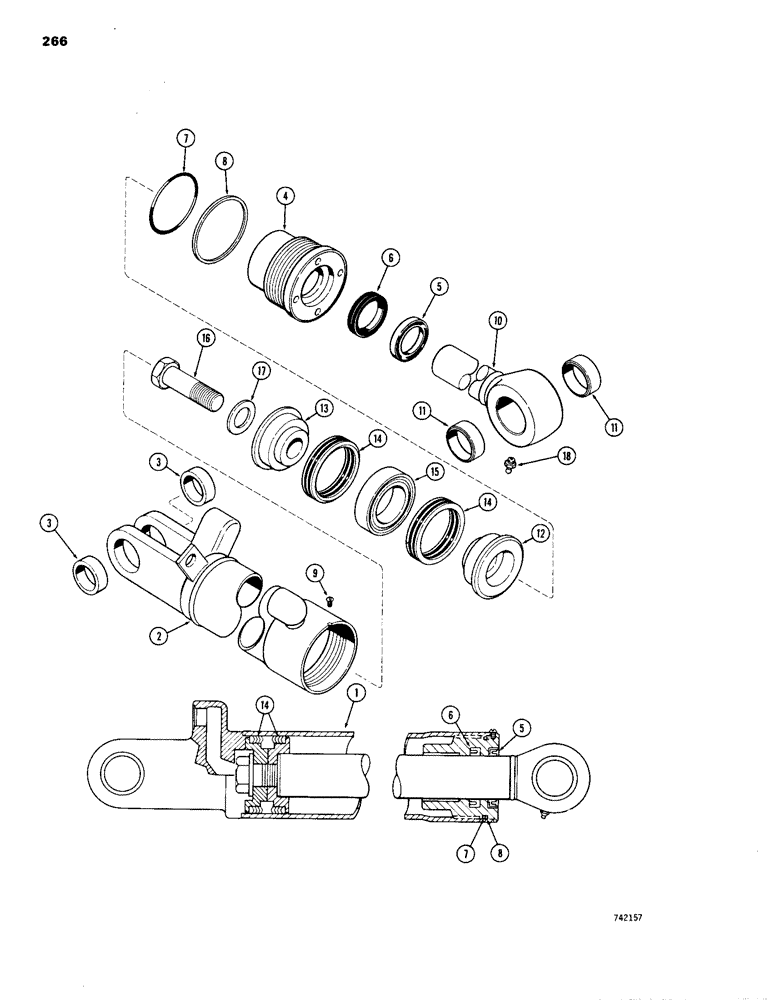

Запчасти Case 1150B (266) - G33995 BUCKET AND FELLER BUNCHER TILT CYLINDER, GLAND HAS NO I.D. MARKINGS (07) - HYDRAULIC SYSTEM

1

G33995

CYLINDER

- bucket and feller buncher, 4-1/2" (114.3 mm) dia x 32" (812.8 mm) stroke, use G34765 cylinder, parts list Fig. 264, Includes: Refs. 2 - 18

2шт.

2

G34083

CYLINDER

TUBE - cylinder body, Includes: Ref. 3

1шт.

3

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- tube

2шт.

G32731

GLAND

ASSEMBLY - order G34632, Fig.268, Includes: Refs. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34628

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod

1шт.

Part of seal kit P/N G34628 and P/N G100779

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34628

1шт.

8

G32284

BACK-UP RING

- backup

1шт.

Part of seal kit P/N G34628

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G34764

ROD

- piston, 2-1/4" dia. (57.15 mm), Includes: Ref. 11

1шт.

11

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

12

D46425

PISTON

- split, rod end

1шт.

13

D46931

PISTON

- split, bolt end

1шт.

14

D47205

PACKING

- piston

2шт.

Part of seal kit P/N G34628

1шт.

15

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

17

G32351

WASHER

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34628

SEAL

KIT - Includes Refs. 5, 6, 7, 8 and 14

1шт.

G100779

SEAL

- rod, service option - extreme heat or cold

1шт.
