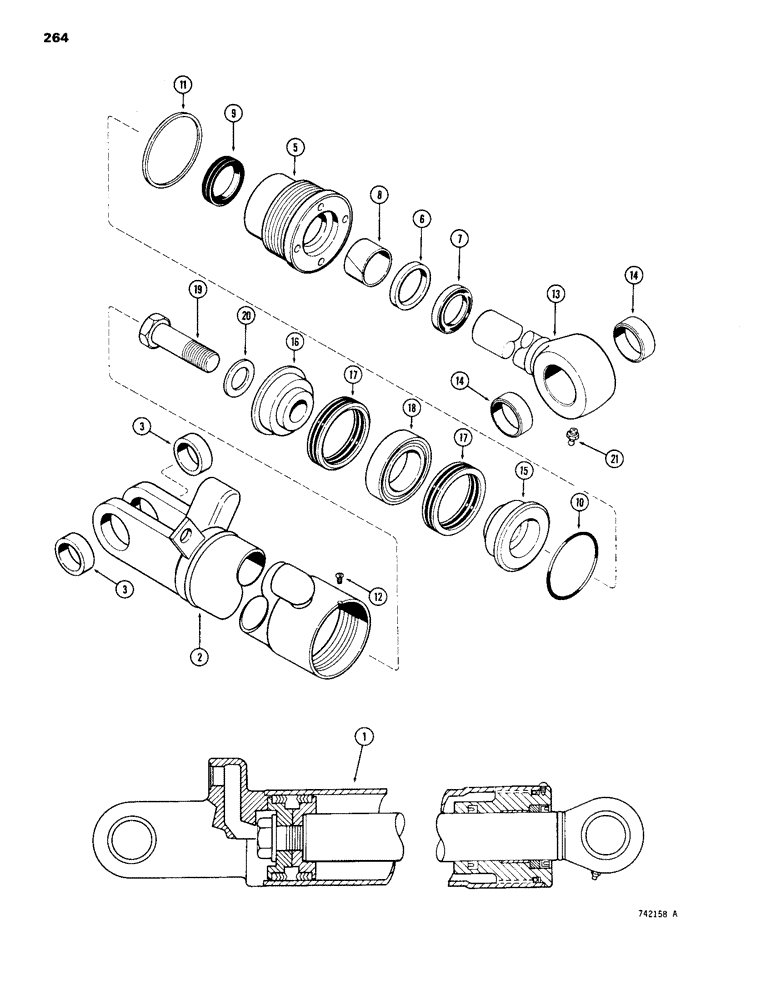

Запчасти Case 1150B (264) - G34765 BUCKET TILT AND FELLER BUNCHER CYLINDER, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G34765

CYLINDER

- bucket and feller buncher, 4-1/2" (114 mm) dia x 32" (813 mm) stroke, Includes: Refs. 2 - 21

2шт.

2

G34083

CYLINDER

TUBE - cylinder body, Includes: Ref. 3

1шт.

3

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

2шт.

G34632

GLAND

ASSEMBLY, Includes: Refs. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G34628

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

Part of seal kit P/N G34628

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod

1шт.

Part of seal kit P/N G34628 and P/N G100779

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G34628

1шт.

11

G32284

BACK-UP RING

- back-up

1шт.

Part of seal kit P/N G34628

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G34764

ROD

- piston, 2-1/4" (57 mm) dia., Includes: Ref. 14

1шт.

14

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- piston rod

2шт.

15

D46425

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

D47205

PACKING

- piston

2шт.

Part of seal kit P/N G34628

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34628

SEAL

KIT - Includes Refs. 7, 8, 9, 10, 11 and 17

1шт.

G100779

SEAL

- rod, service option - extreme heat or cold

1шт.
