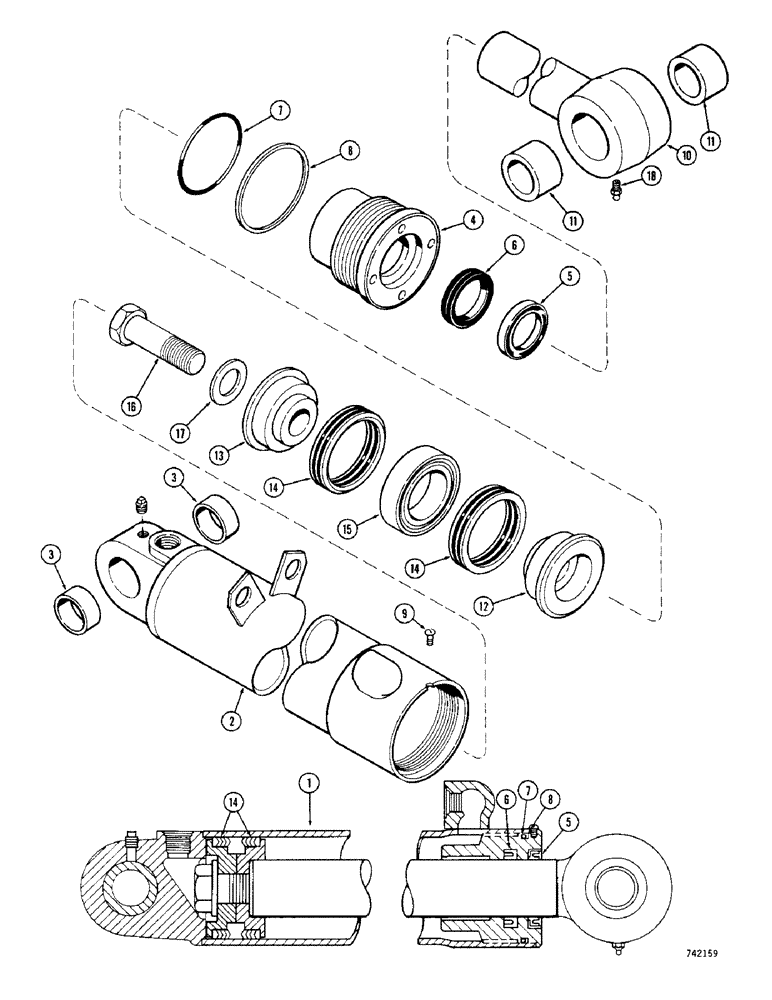

Запчасти Case 1150B (262) - G33996 AND G33997 LOADER LIFT CYLINDERS, GLAND HAS NO I.D. MARKINGS (07) - HYDRAULIC SYSTEM

1

G33996

CYLINDER - RH lift, 5" (127 mm) dia x 31-1/2" (800.1 mm) stroke

1шт.

1

G33997

CYLINDER - LH lift, 5" (127 mm) dia x 31-1/2" (800.1 mm) stroke, Includes: Refs. 2 - 19

1шт.

2

G34092

TUBE,41" L

- G33966 cylinder

1шт.

2

G34093

TUBE

- G33997 cylinder, Includes: Ref. 3

1шт.

3

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- tube

2шт.

G32802

GLAND

ASSEMBLY, Includes: Refs. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND BUSHING

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G32696

1шт.

6

D39359

RUBBER SEAL

SEAL - piston rod

1шт.

Part of seal kit P/N G32696

1шт.

7

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G32696

1шт.

8

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- back-up

1шт.

Part of seal kit P/N G32696

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G34098

ROD

- piston, 2-1/4" dia (57.15 mm), Includes: Ref. 11

1шт.

11

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- piston rod

2шт.

12

D46426

PISTON

- split, rod end

1шт.

13

D46932

PISTON

- split, bolt end

1шт.

14

D47206

PACKING

- piston

2шт.

Part of seal kit P/N G32696

1шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

17

G32351

WASHER

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

19

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

G32696

KIT

SEAL KIT - Includes Refs. 5, 6, 7, 8 and 14

1шт.

G100779

SEAL

- rod, service option - extreme heat or cold

1шт.
