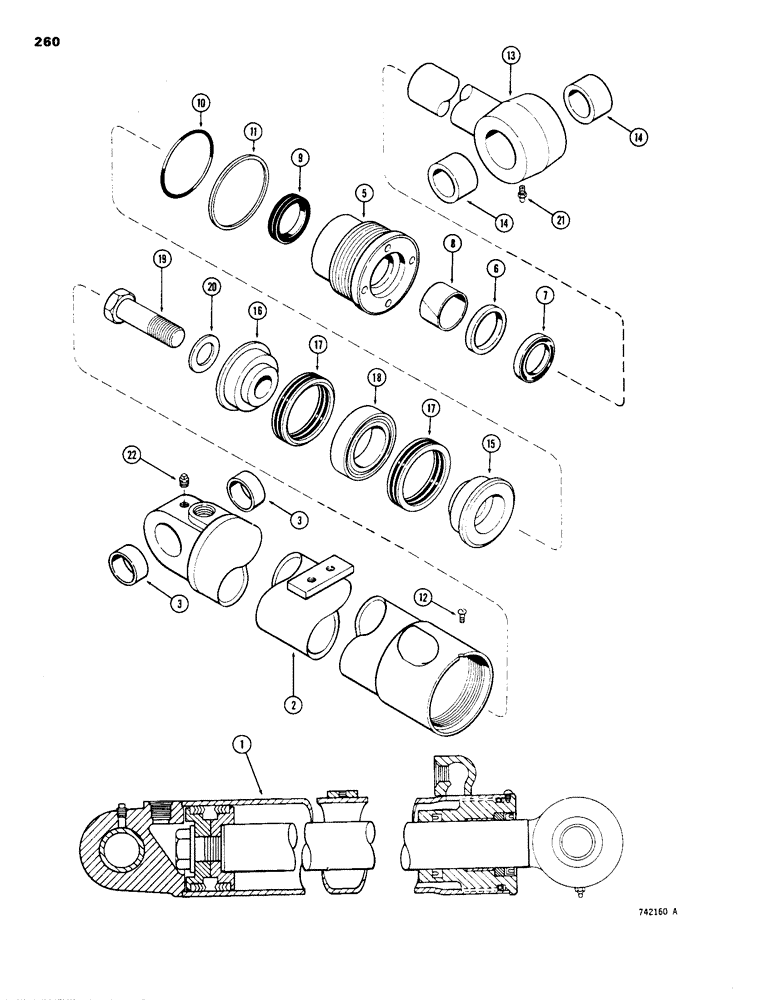

Запчасти Case 1150B (260) - G34836 AND G34837 LOADER LIFT CYLINDERS, GLAND IS STAMPED W/ CYLINDER PART NUMBER (07) - HYDRAULIC SYSTEM

1

G34836

CYLINDER

- RH lift, 5" (127 mm) dia x 31-1/2" (800 mm) stroke

1шт.

1

G34837

CYLINDER

- LH lift, 5" (127 mm) dia x 31-1/2" (800 mm) stroke, Includes: Refs. 2 - 22

1шт.

2

G34838

TUBE,40.99" L

- G34836 cylinder

1шт.

2

G34839

TUBE

- G34837 cylinder, Includes: Ref. 3

1шт.

3

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- tube

2шт.

G34726

GLAND

ASSEMBLY, Includes: Refs. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N G34752

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

Part of seal kit P/N G34752

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

Part of seal kit P/N G34752 and P/N G100779

1шт.

10

NLS

NO LONGER SERVICED

1шт.

Part of seal kit P/N G34752

1шт.

11

S92639

RING

- backup

1шт.

Part of seal kit P/N G34752

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, no. 8 - 32 NC x 1/4"

1шт.

13

G34098

ROD

- piston, 2-1/4" (57 mm) dia., Includes: Ref. 14

1шт.

14

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- piston rod

2шт.

15

D46426

PISTON

- split, rod end

1шт.

16

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split, bolt end

1шт.

17

D47206

PACKING

- piston

2шт.

Part of seal kit P/N G34752

1шт.

18

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8" NPT

1шт.

22

353-8

PLUG,Cap, .485" OD

- hex socket head, 1/8" NPT

1шт.

G34752

SEAL

KIT - Includes Refs. 7, 8, 9, 10, 11 and 17

1шт.

G100779

SEAL

- rod, service option - extreme heat or cold

1шт.
