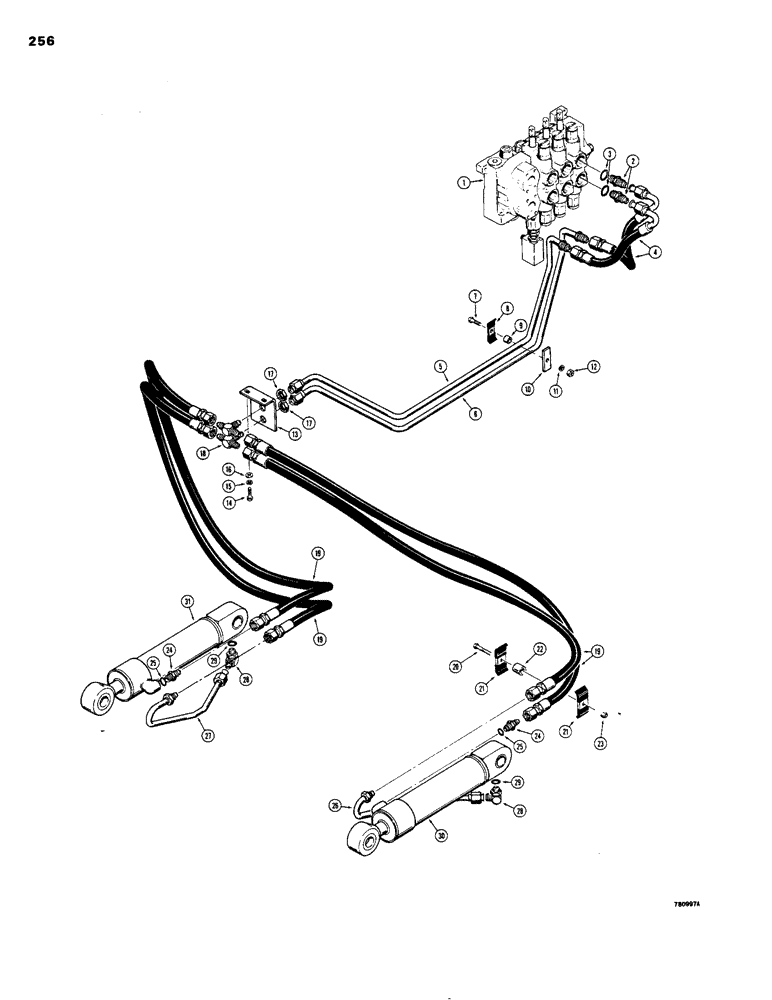

Запчасти Case 1150B (256) - RIPPER HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control, Fig. 316 - 324 for proper valve

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

R27628

HOSE

ASSEMBLY - at ripper

2шт.

5

R27629

TUBE,0.625" OD

- upper

1шт.

6

R27633

TUBE

- lower

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

D40236

CLAMP

- tube

1шт.

9

T25073

BUSHING

SPACER - clamp

1шт.

10

D40083

BLOCK

- tube

1шт.

11

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

13

R35545

BRACKET

- tube and hose mounting

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

16

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

18

218-806

TEE,7/8"-14, 37 Degree, Blkhd

2шт.

19

D27978

HOSE

- at cylinder, 30-3/4" (781 mm) long

4шт.

20

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

D33316

CLAMP

- hose

4шт.

22

T38864

BUSHING

SPACER - clamp

2шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

2шт.

24

NLS

NO LONGER SERVICED

FITTING - male, straight, restrictor, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

R29282

TUBE,0.625" OD

- cylinder, eye end, RH

1шт.

27

R29283

TUBE,0.625" OD

- cylinder, eye end, LH

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, male, Incl. Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

CYLINDER - ripper, RH, Fig. 304 - 310

1шт.

31

REF

INSTRUCTION

CYLINDER - ripper, LH, Fig. 304 - 310

1шт.
