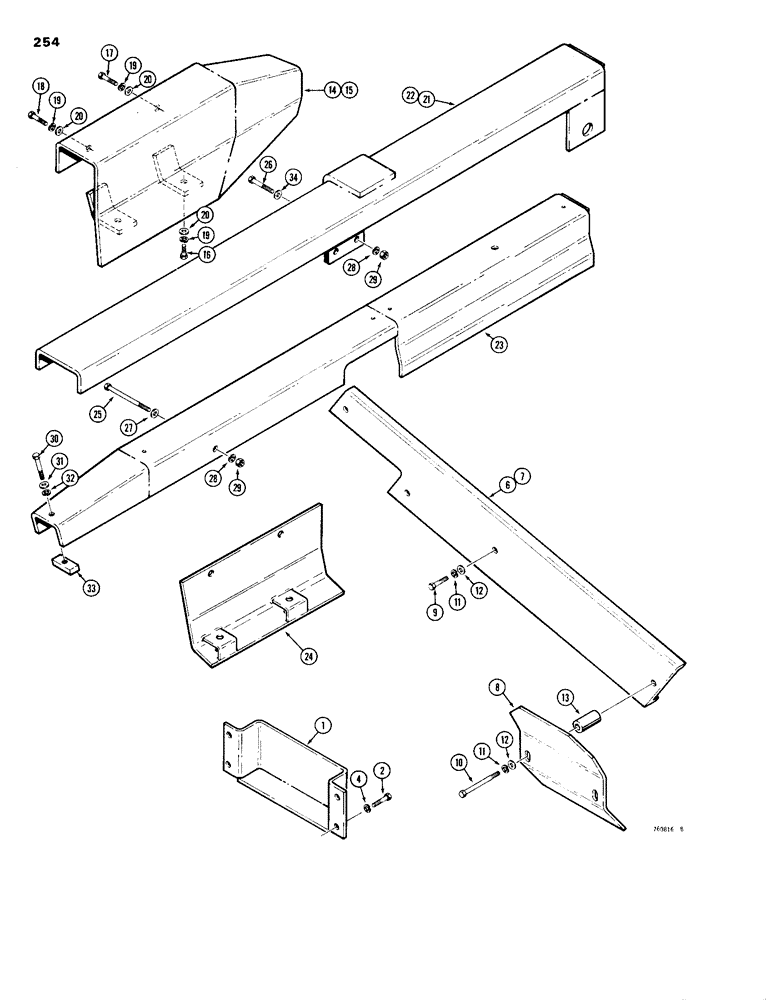

Запчасти Case 1150B (254) - ANGLE TILT PITCH HYDRAULIC GUARDS, USED TRACTOR SN 7305244 & AFTER (07) - HYDRAULIC SYSTEM

1

R41555

GUARD ASSY.

GUARD - fittings, at grille

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

6

R34413

GUARD

- channel, LH

1шт.

7

R34414

GUARD

- channel, RH

1шт.

8

R33757

GUARD

- blade, center

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

10

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

11

92-8

LOCK WASHER,1/2"

8шт.

12

95-33

WASHER - flat, 1/2"

8шт.

13

R28699

BUSHING

SPACER - round

2шт.

14

R34529

GUARD

- LH cylinder

1шт.

Part of Service Kit before S/N 7305851, P/N R39331

1шт.

15

R34530

GUARD

- RH cylinder

1шт.

Part of Service Kit before S/N 7305851, P/N R39331

1шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

Part of Service Kit before S/N 7305851, P/N R39331

1шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

Part of Service Kit before S/N 7305851, P/N R39331

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

10шт.

20

95-33

WASHER - flat, 1/2"

10шт.

21

R37087

GUARD

- LH, angle cylinder rod

1шт.

22

R37088

GUARD

- RH, angle cylinder rod

1шт.

23

R41349

GUARD ASSY.

GUARD - angle cylinder

2шт.

24

R39329

GUARD

- LH, hose

1шт.

Part of Service Kit before S/N 7305851, P/N R39331

1шт.

24

R39330

GUARD

- RH, hose

1шт.

25

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 2"

4шт.

27

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

28

92-8

LOCK WASHER,1/2"

8шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

30

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

2шт.

Part of Service Kit before S/N 7305851, P/N R39331

1шт.

31

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

R35933

BLOCK

- tapped

2шт.

34

R24718

WASHER

- hardened

8шт.

R39331

GUARD ASSY.

KIT - service before tractor sn 7305851, Includes: Ref.#s 14 - 17, 24, 30 and Ref.#s 10 - 16, Fig. 251

1шт.
