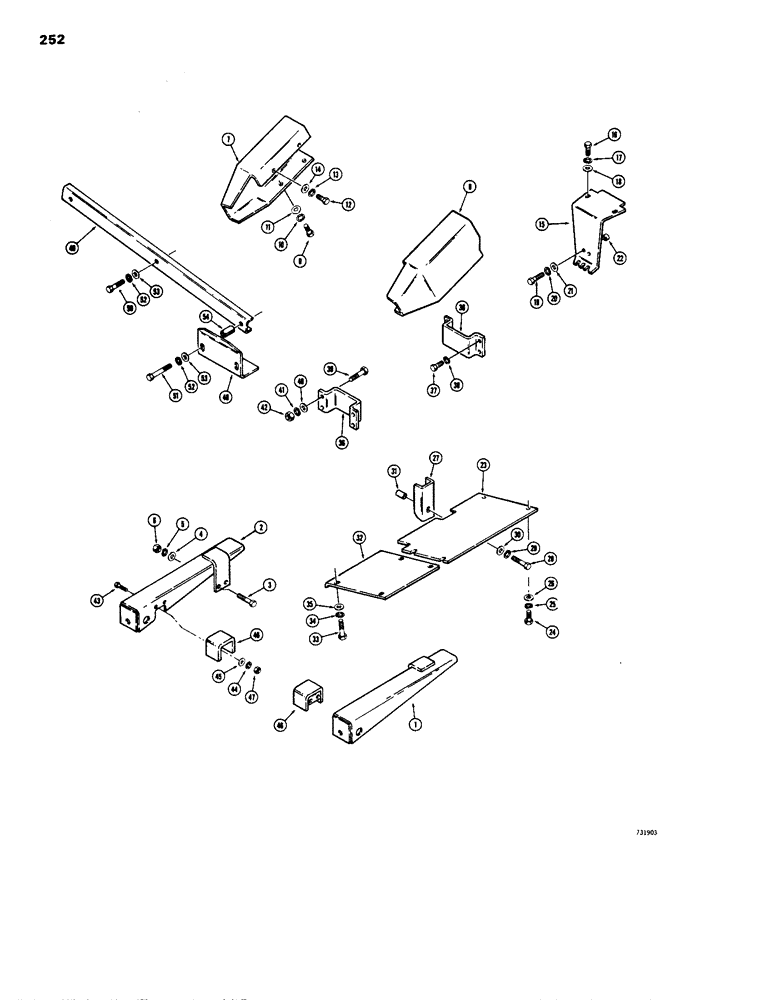

Запчасти Case 1150B (252) - ANGLE TILT PITCH DOZER HYDRAULIC GUARDS, USED BEFORE TRACTOR SN 7305244 (07) - HYDRAULIC SYSTEM

1

R30431

GUARD

- angle cylinder, RH

1шт.

2

R30430

GUARD

- angle cylinder, LH

1шт.

3

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

4

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

7

R26847

GUARD - tilt cylinder, LH

1шт.

8

R26848

GUARD ASSY.

GUARD - tilt cylinder, RH

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 1"

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

15

R29804

GUARD - R26678 and R26767 moldboard, center

1шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

22

R29805

SPACER - guard

2шт.

23

R27236

GUARD

- front hydraulic lines

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

195-33

WASHER,1/2"

- lock, 1/2"

2шт.

27

R27234

GUARD - channel tubes

1шт.

28

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

1шт.

29

92-8

LOCK WASHER,1/2"

1шт.

30

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

31

R26376

SPACER - guard

1шт.

32

R27237

PLATE ASSY.

GUARD - hydraulic, at valve

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

36

R29803

GUARD - hose, blade and grille

2шт.

37

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

38

92-8

LOCK WASHER,1/2"

4шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

40

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

43

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

46

R32441

GUARD

- angle cylinder

2шт.

47

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

48

R28698

PLATE ASSY.

GUARD - center, R31180 and R31358 moldboard (Replaced R29803)

1шт.

49

R31331

GUARD - ends, R31180 and R31358 moldboards

2шт.

50

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

51

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

53

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

54

R28699

BUSHING

SPACER - guard

2шт.
