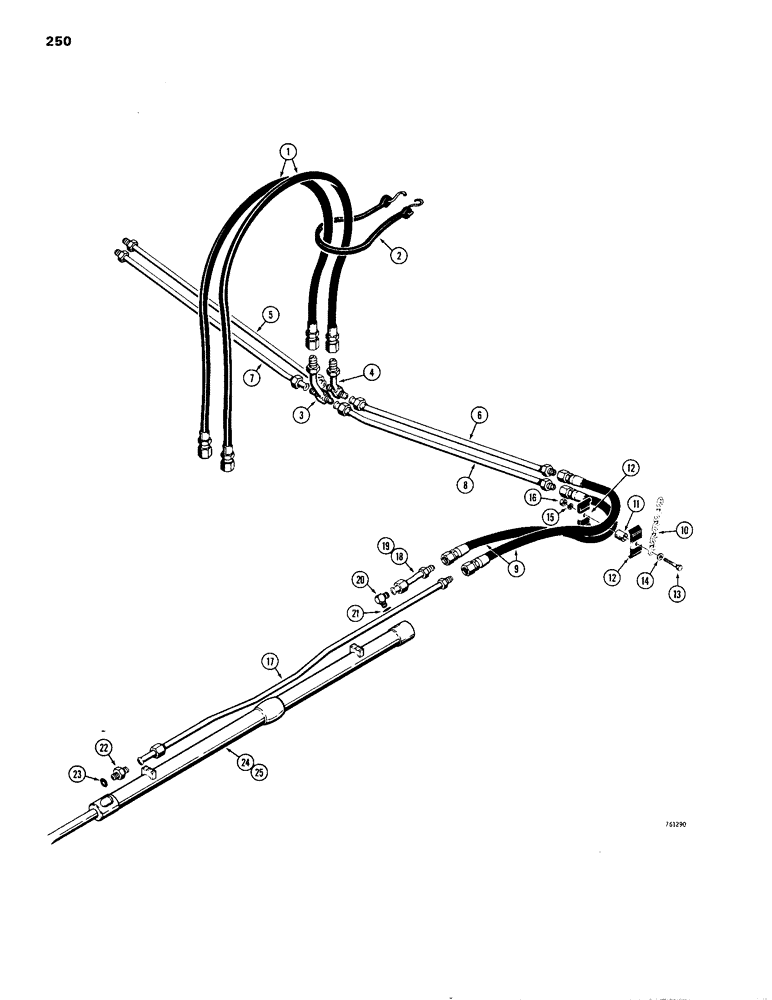

Запчасти Case 1150B (250) - DOZER ANGLING HYDRAULIC CIRCUIT, GRILLE TO CYLINDER (07) - HYDRAULIC SYSTEM

1

R31442

HOSE

-, Serial Range: crawler-blade

2шт.

2

R34737

STRAP

- hose

1шт.

3

R33834

TUBE,1/2" OD x 3.02, 2.06" L

- tee, lower

1шт.

4

R33832

TUBE,1/2" OD x 2.42, 0.84" L

- tee, upper

1шт.

5

R34335

TUBE,1/2" OD x 34.8, 5.72" L

- LH, upper, to closed end of cylinder

1шт.

The rod end of the LH cylinder is connected to the closed end of the RH cylinder. The closed end of the LH cylinder is connected to the rod end of the RH cylinder.

1шт.

6

R34339

TUBE,1/2" OD x 33.58, 5.72" L

- RH, upper, to rod end of cylinder

1шт.

The rod end of the LH cylinder is connected to the closed end of the RH cylinder. The closed end of the LH cylinder is connected to the rod end of the RH cylinder.

1шт.

7

R34339

TUBE,1/2" OD x 33.58, 5.72" L

- LH, lower, to rod end of cylinder

1шт.

The rod end of the LH cylinder is connected to the closed end of the RH cylinder. The closed end of the LH cylinder is connected to the rod end of the RH cylinder.

1шт.

8

R34341

TUBE,1/2" OD x 35.44, 5.64" L

- RH, lower, to closed end of cylinder

1шт.

The rod end of the LH cylinder is connected to the closed end of the RH cylinder. The closed end of the LH cylinder is connected to the rod end of the RH cylinder.

1шт.

9

W11354

HOSE

- hydraulic, 36" (914 mm) long

4шт.

10

R34523

CHAIN (AG)

CHAIN - hose guard

2шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

11

D33829

BUSHING

SPACER - clamp

2шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

12

D40236

CLAMP

- hose

4шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

Part of Service Kit before S/N 7305851, P/N R39331 on Fig. 254

1шт.

17

R36725

TUBE,0.5" OD x 53.12" L

- cylinder, rod end

2шт.

18

R36818

TUBE,0.5" OD x 4.4, 0.2" L

- cylinder, standard dozer

2шт.

19

R36864

TUBE,0.5" OD x 3.66, 0.2" L

- cylinder, wide track dozer

2шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, Incl. Ref 23 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

REF

INSTRUCTION

CYLINDER - angle, wide track dozer, Fig. 296 - 302

1шт.

25

REF

INSTRUCTION

CYLINDER - angle, standard dozer, Fig. 296 - 302

1шт.
