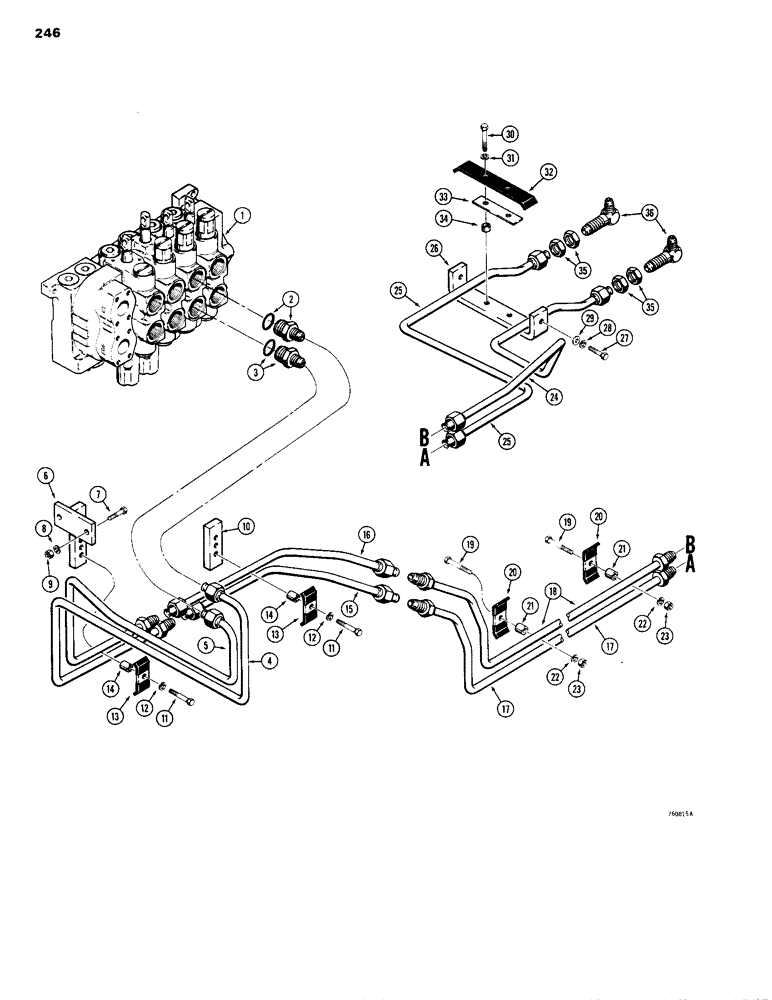

Запчасти Case 1150B (246) - DOZER ANGLING HYDRAULIC CIRCUIT, USED TRAC. SN 7305244 & AFT, VALVE TO GRILLE - ON RH SIDE OF FRAME (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control, Fig. 316 - 324

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Includes: Ref. 3

2шт.

3

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

O-RING

1шт.

4

R33857

TUBE

- at valve, upper

1шт.

5

R33855

TUBE

- at valve, lower

1шт.

6

R27748

BRACKET

- tube support

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

R27517

BLOCK

- tapped

1шт.

11

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

13

R25782

CLAMP

- tubes

2шт.

14

D33552

BUSHING

SPACER - clamp

2шт.

15

R33853

TUBE

- lower

1шт.

16

R33851

TUBE

- upper

1шт.

17

R33849

TUBE

- lower

1шт.

18

R33847

TUBE

- upper

1шт.

19

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

20

R25782

CLAMP

- tubes

2шт.

21

F41806

BUSHING

SPACER - clamp

2шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

24

R33843

TUBE

- RH

1шт.

25

R33845

TUBE

- LH

1шт.

26

R35905

SUPPORT

- tubes

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

29

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

31

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

32

R35910

CLAMP

- tubes

1шт.

33

R35908

SPACER

- tubes

1шт.

34

R29842

SPACER,3/8" Pipe x .469"

- tubes

2шт.

35

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

36

R33859

FITTING

- special, 90 degree

2шт.
