Запчасти Case 1150B (226) - LOADER ARM AUXILIARY HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

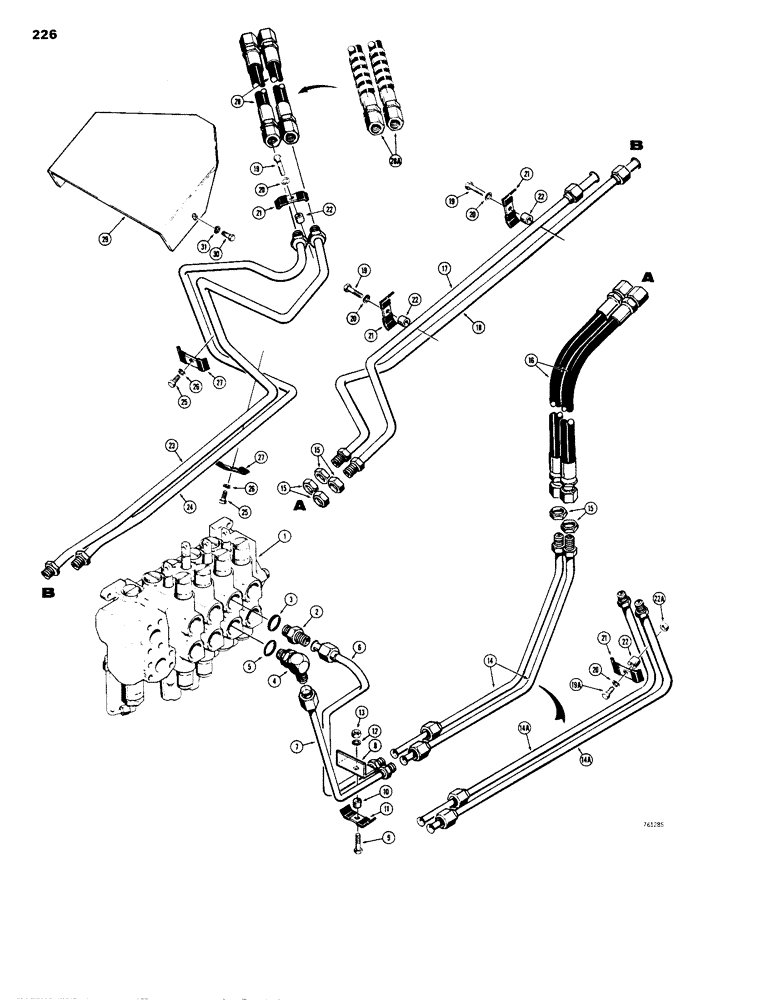

Схема запчастей Case 1150B - (226) - LOADER ARM AUXILIARY HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM
21
24
21
11
20
14a
22a
1
26
14
22
23
27
20
14a
13
6
9
12
30
31
15
19a
19
21
8
28a
25
5
22
19
2
7
27
21
10
18
16
15
22
20
15
20
17
25
26
19
29
20
22
4
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - equipment control, Figs. 316 & 324 for proper valves

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, Includes: Ref. 5 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

R27729

PIPE,0.75" OD

TUBE - at valve, upper

1шт.

7

R27731

TUBE

- at valve, lower

1шт.

8

R27733

BRACKET

- tube support

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

R29844

SPACER,3/8" Pipe x 11/16"

- tube

1шт.

11

D40236

CLAMP

- tube

1шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

14

R27734

TUBE

- early production

1шт.

14a

R34467

TUBE,0.75" OD

- late production

2шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, 1-3/16" - 12 NF

4шт.

16

L15030

HYDRAULIC HOSE,0.75" ID x 30.00", SAE 100R2 Type A

HOSE, , Lower Loader Arm 0.75" ID x 30.00", SAE 100R2 Type A

2шт.

17

R27739

TUBE

- loader arm, upper

1шт.

18

R27742

TUBE,0.75" OD

- loader arm, lower

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

19a

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 2"

1шт.

20

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

21

D40236

CLAMP

- tube

4шт.

22

R29844

SPACER,3/8" Pipe x 11/16"

- tube

4шт.

22a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

R27746

TUBE,0.75" OD

- loader arm, upper

1шт.

24

R27744

TUBE,0.75" OD

- loader arm, lower

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

27

D40236

CLAMP

- tube

2шт.

28

R31969

HOSE

- to bucket, 46" (1168 mm) long, clam bucket models

2шт.

28a

R30399

HOSE

- hydraulic to feller buncher, 30 (762 mm) long

2шт.

29

R30395

GUARD

- hose, feller buncher models

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used, feller buncher models Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used, feller buncher models Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

WASHER - lock, , feller buncher models 3/8"

2шт.

31

92-5

LOCK WASHER,5/16"

WASHER - lock, , if used, feller buncher models 5/16"

2шт.
