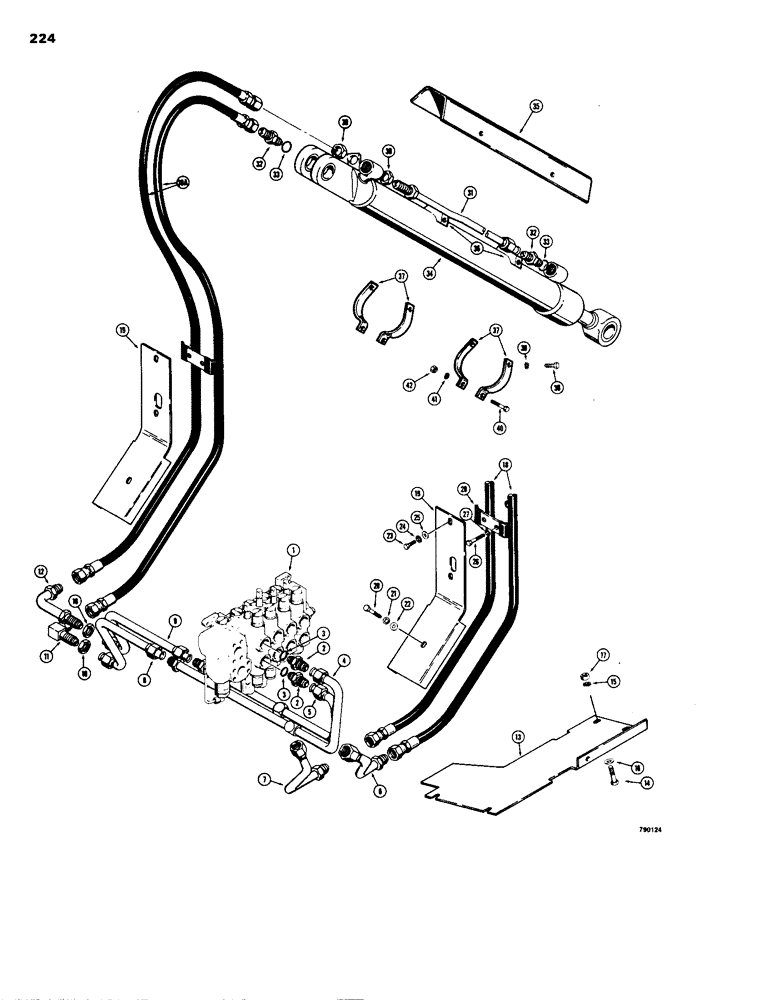

Запчасти Case 1150B (224) - LOADER BUCKET AND FELLER BUNCHER, TILT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control, Figs.316 & 324 for proper valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 3 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

3

218-5018

FITTING

O-RING

1шт.

4

R27770

TUBE

- upper, at valve

1шт.

5

R27774

TUBE

- lower, at valve

1шт.

6

R27790

TUBE

- RH, use R30684 hose

1шт.

7

R27788

TUBE

- LH, use R30684 hose

1шт.

8

R27786

TUBE

- LH

1шт.

9

R27784

TUBE

- LH

1шт.

10

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

11

R26018

FITTING

- special

1шт.

12

R26020

TUBE

- hydraulic

1шт.

13

R29501

GUARD - lower, RH dump tubes

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

18

R27800

HOSE

- without cab, 59" (1499 mm) long

2шт.

18

R27800

HOSE

- with cab (Replaced R32701)

2шт.

18a

R30684

HOSE

- without cab, 70" (1778 mm) long

2шт.

18a

R30684

HOSE

- with cab, 68" (1253 mm) long(Replaced R40358)

2шт.

19

R26652

GUARD - hose

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

28

R31467

CLAMP

- hose

2шт.

30

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, 1-1/16" - 12 NF

4шт.

31

R27807

TUBE

- to rod end of cylinder

2шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 33

4шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

REF

INSTRUCTION

CYLINDER - bucket tilt and feller buncher, parts list Figs. 264 & 266

2шт.

35

R30897

GUARD - cylinder, feller buncher

2шт.

36

R31036

SUPPORT

- guard

4шт.

37

R30831

STRAP

- guard mounting

8шт.

38

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

39

92-8

LOCK WASHER,1/2"

8шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

41

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.
