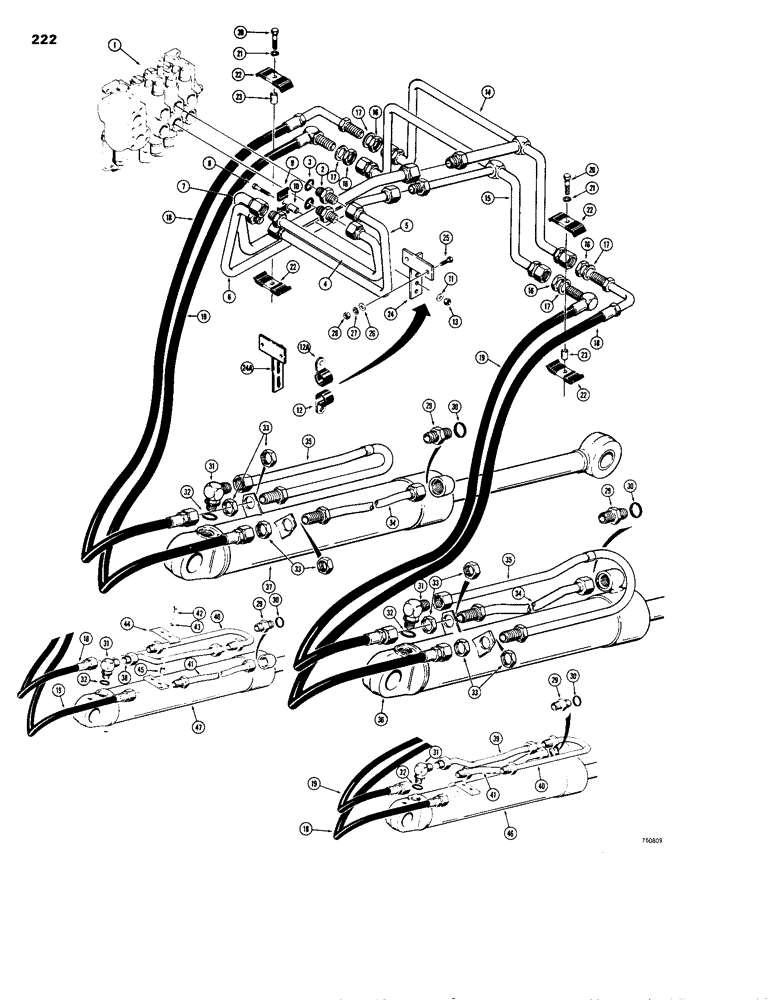

Запчасти Case 1150B (222) - LOADER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control, Fig. 316 - 324

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 3 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

R27782

PIPE,1" OD

TUBE - lower, at valve

1шт.

5

R27780

TUBE

- upper, at valve

1шт.

6

R27792

TUBE

- to crossover, lower

1шт.

7

R27778

TUBE,1.25" OD

- to crossover, upper

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

R36862 bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", R27794 bracket

1шт.

9

R25782

CLAMP

- R27794 bracket

1шт.

10

R29845

BUSHING

SPACER - R27794 bracket

1шт.

11

195-25

WASHER,3/8"

- flat, 3/8"

1-2шт.

12

R14668

CLAMP

- tube

1шт.

12a

D40471

CLAMP

- tube

1шт.

13

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

1-2шт.

14

R31494

TUBE

- crossover, upper

1шт.

15

R31490

TUBE

- crossover, lower

1шт.

16

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

4шт.

17

195-2131

WASHER,1 3/8" x 2" x .065"

- flat

8шт.

18

R27796

HOSE

- outer

2шт.

19

R27795

HOSE

- inner

2шт.

20

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

22

R27809

CLAMP

- hose

4шт.

23

F41626

SPACER

- hose

2шт.

24

R27794

BRACKET

- tube support, if used, order Ref. 24A

1шт.

24a

R36862

SUPPORT

BRACKET - tube support, if used

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

27

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

29

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 30 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

31

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, male, adjustable, Incl. Ref. 32

2шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

33

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Serial Range: -7304036

8шт.

34

R27798

TUBE

- hydraulic, rod end of cylinderF, Serial Range: -7304036

2шт.

35

R27806

TUBE

- hydraulic, closed end of cylinderF, Serial Range: -7304036

2шт.

36

REF

INSTRUCTION

CYLINDER - RH lift, Figs. 260 & 262F, Serial Range: -7304036

1шт.

37

REF

INSTRUCTION

CYLINDER - LH lift, Figs. 260 & 262F, Serial Range: -7304036

1шт.

38

R31597

TUBE,1" OD x 20.15, 2" L

- hydraulic, L.H.F, Serial Range: -7304036

1шт.

39

R31598

TUBE

- hydraulic, R.H.F, Serial Range: -7304036

1шт.

40

R31460

PIPE,1" OD x 16.9, 40" L

TUBE - hydraulicF, Serial Range: -7304036

2шт.

41

R31456

TUBE,1" OD x 24.95, 1.5" L

- hydraulicF, Serial Range: -7304036

2шт.

42

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

, Serial Range: -7304036

4шт.

43

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8", Serial Range: -7304036

4шт.

44

R31466

CLAMP

- tubeF, Serial Range: -7304036

2шт.

45

R29848

BUSHING

SPACER - clampF, Serial Range: -7304036

4шт.

46

REF

INSTRUCTION

CYLINDER - RH lift, parts list Figs.260 & 262F, Serial Range: -7304036

1шт.

42

REF

INSTRUCTION

CYLINDER - LH lift, parts list Figs.260 & 262F, Serial Range: -7304036

1шт.
