(220) - R38214 HYDRAULIC PUMP, LOADER MODELS

Запчасти Case 1150B (220) - R38214 HYDRAULIC PUMP, LOADER MODELS (07) - HYDRAULIC SYSTEM

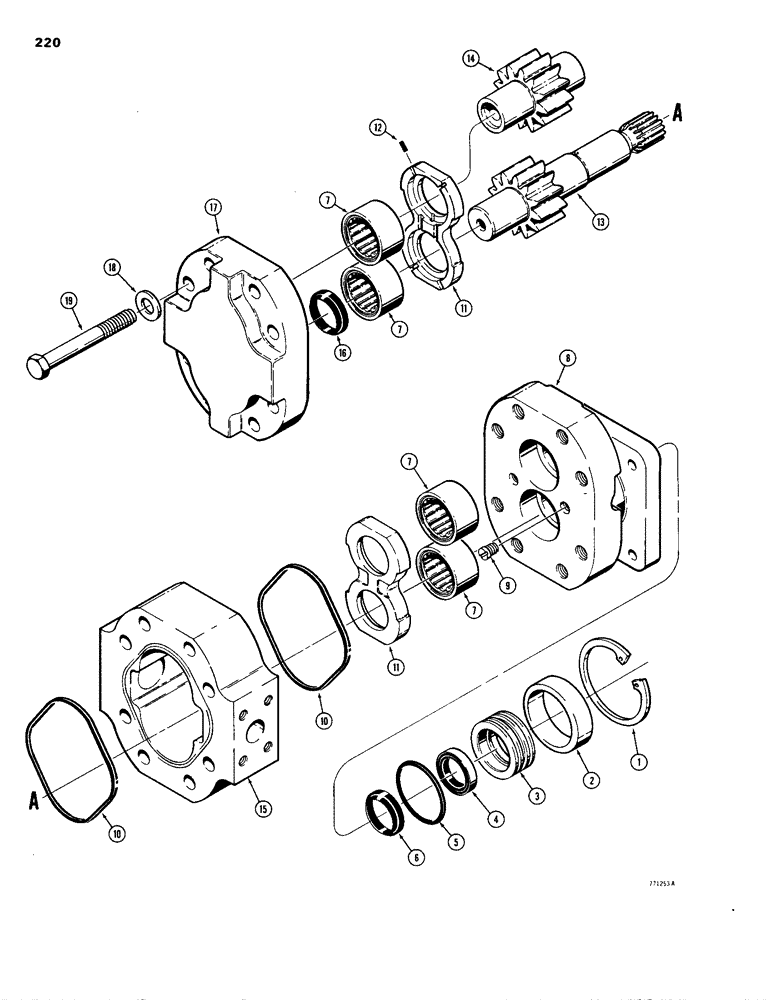

Схема запчастей Case 1150B - (220) - R38214 HYDRAULIC PUMP, LOADER MODELS (07) - HYDRAULIC SYSTEM
19
15
13
16
7
11
1
4
18
14
9
10
3
8
6
17
10
5
2
7
12
7
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R38214

PUMP

- hydraulic, CS and S no. EXP900-311, Includes: Refs. 1 - 19

1шт.

1

49477

RING, SNAP

3.156", Int, #315

1шт.

2

W14026

SPACER

1шт.

3

W14025

RETAINER

- seal

1шт.

4

A16796

SEAL

- oil

1шт.

5

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

1шт.

6

S82765

SEALING RING

- oil

1шт.

7

A16793

NEEDLE BEARING

BEARING - roller

2шт.

8

D77512

VALVE

COVER - shaft

1шт.

9

L32320

PLUG

1шт.

10

S82795

GASKET

2шт.

11

S82770

PLATE

- thrust

2шт.

12

W14886

PLUG

SEAL - pocket

12шт.

S87297

GEAR-SET

GEAR SET(Replaced S82797), Includes: Refs. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

15

D77513

HOUSING

- gear

1шт.

16

S82765

SEALING RING

1шт.

17

W14027

COVER

- rear

1шт.

18

D31957

WASHER

- hardened

8шт.

19

26-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 8

HHCS - 5/8" - 11 NC x 5-1/4", grade 8

8шт.
