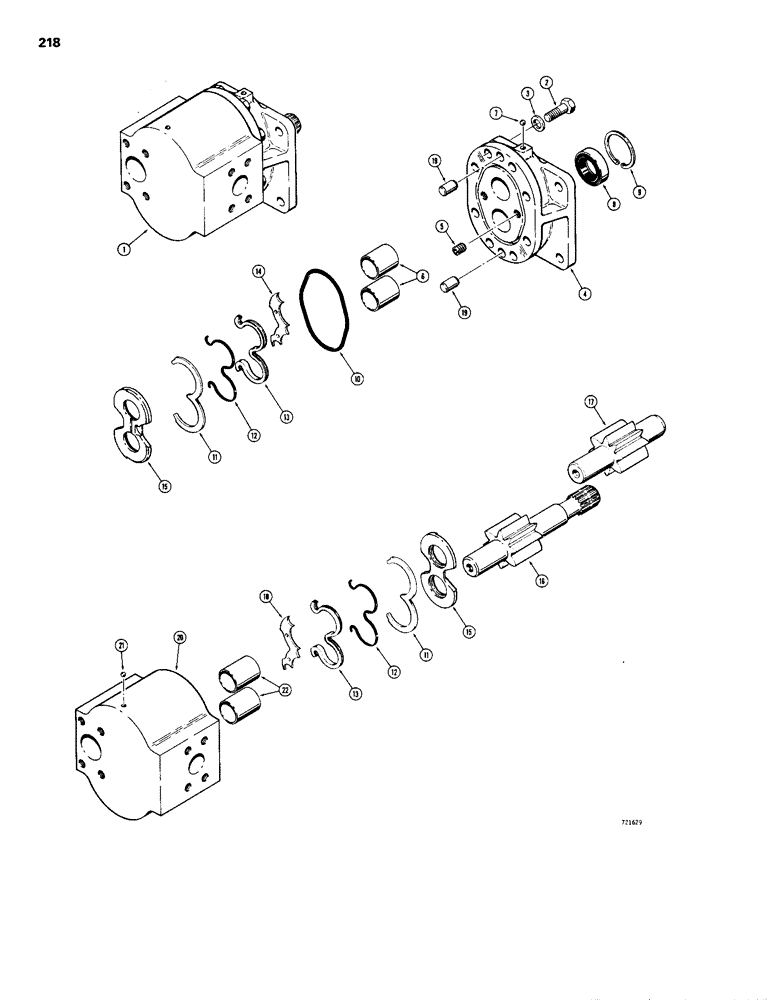

Запчасти Case 1150B (218) - R25852 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

R25852

PUMP

- hydraulic, Tyrone no. 20300 C-DDJ, Includes: Ref. 2 - 22

1шт.

2

113-405

X

HHCS - 1/2" - 13 NC x 1-1/4"

8шт.

3

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- special

8шт.

R30176

COVER ASSY

COVER ASSEMBLY - front, flanged, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- hex, socket head, 1/8" NPT

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - gear

2шт.

7

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

8

D41418

SEAL

- drive shaft

1шт.

Part of pump rebuild kit P/N R30177

1шт.

9

D41419

RING

- snap

1шт.

Part of pump rebuild kit P/N R30177

1шт.

10

D43797

SEAL

O-RING - 4-1/4" (107.95 mm) x 4-3/8" (111.252 mm) x 1/16" (1.524 mm) used if O-ring groove is less than 1/16" (1.524 mm) deep

1шт.

Part of pump rebuild kit P/N R30177

1шт.

10

L35781

O-RING,4-1/4" ID x 4-7/16" OD x 3/32"

- 4-1/4" (107.95 mm) x 4-7/16" (111.252 mm) x 3/32" (1.524 mm) used if O-ring groove is more than 1/16" (1.524 mm) deep

1шт.

Part of pump rebuild kit P/N R30177

1шт.

11

D44102

RING

- retaining

2шт.

Part of pump rebuild kit P/N R30177

1шт.

12

L32845

O-RING

- strip

2шт.

Part of pump rebuild kit P/N R30177

1шт.

13

D44099

RING

- backup

2шт.

Part of pump rebuild kit P/N R30177

1шт.

14

D44101

PLATE

- isolation, top

1шт.

15

D42856

PLATE

- pressure

2шт.

R30178

GEAR

SHAFT AND GEAR SET - matched, Includes: Refs. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

18

D44100

PLATE

- isolation, bottom

1шт.

19

D41414

PIN

DOWEL -, Serial Range: body-cover

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

21

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

BALL - steel, 3/16" dia.

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - body

2шт.

R30177

KIT

- pump rebuild, Includes Refs. 8 - 13

1шт.
