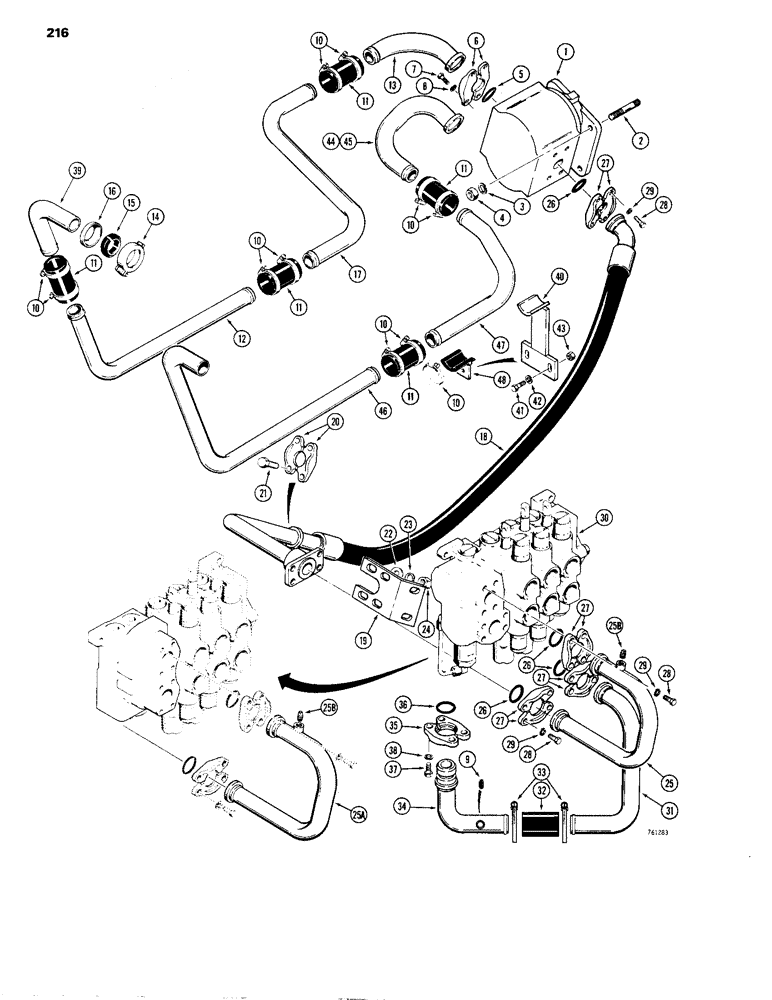

Запчасти Case 1150B (216) - EQUIPMENT BASIC HYD. CONTROL CIRCUIT, HYDRAULIC PUMP TO EQUIP. CONTROL VALVE W/ SIDE PORTED PUMP (07) - HYDRAULIC SYSTEM

1

R38214

PUMP

- hydraulic, parts list Fig. 220

1шт.

2

G102127

STUD

- 1/2" - 13 NC x 3-13/32", replaces D45312

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

6

A14157

FLANGE

CLAMP - split flange

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

10

214-276

CLAMP - worm screw

5-7шт.

11

R33682

HOSE

- 2" (51 mm) ID x 5" (127 mm)

2-3шт.

12

R27305

TUBE

- if used

1шт.

13

R38203

TUBE - if used

1шт.

14

R30064

CLAMP

- tube

1шт.

15

R30065

GASKET

- tube

1шт.

16

R30066

RETAINER

- gasket

1шт.

17

R38205

TUBE - if used

1шт.

18

R38213

HOSE

- dozer models

1шт.

18

R38289

HOSE

- loader models

1шт.

19

R27608

BRACKET

- hose mounting (Replaced R33616)

1шт.

20

A14157

FLANGE

CLAMP - split flange

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

6шт.

22

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

23

92-8

LOCK WASHER,1/2"

6шт.

24

95-108

NUT - hex, 1/2" - 13 NC

6шт.

25

R27306

TUBE

- used with early end section

1шт.

25a

R33811

TUBE

- used with late end section, Includes: Ref. 25B

1шт.

25b

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, R27306 and R33811 tube

1шт.

26

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

4шт.

27

A12301

CLAMP,Half

CLAMP - split flange

8шт.

28

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

16шт.

29

92-7

LOCK WASHER,7/16"

16шт.

30

REF

INSTRUCTION

VALVE - equipment control, Fig. 316 thru 324 for proper valves

1шт.

31

R40140

TUBE,1.5" OD

- hydraulic return, at valve

1шт.

32

R30062

HOSE

- 1-1/2" (38 mm) ID x 4-1/2" (114 mm)

1шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

34

R27310

TUBE

- hydraulic return, at tank

1шт.

35

R27612

CLAMP

- split flange

2шт.

36

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

1шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

38

92-8

LOCK WASHER,1/2"

4шт.

39

R30060

TUBE

- if used

1шт.

40

R38206

BRACKET - if used

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

42

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

44

R38736

TUBE,1.998" ID x 2 - 2.38" OD

- dozer models, if used

1шт.

45

R38738

PIPE FITTING,1.998" ID x 2 - 2.38" OD

TUBE - loader models, if used

1шт.

46

R38734

TUBE,2" OD

- if used

1шт.

47

R38735

TUBE,2" OD

- if used

1шт.

48

R38740

BRACKET

- tube, if used

1шт.
