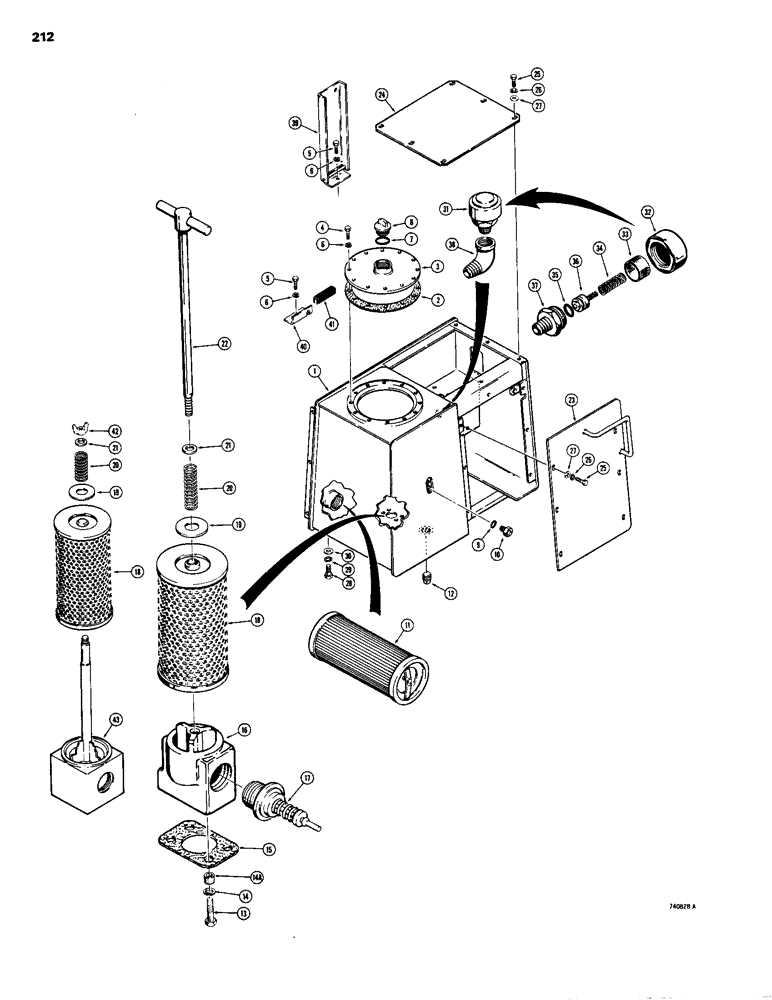

Запчасти Case 1150B (212) - HYDRAULIC TANK ASSEMBLIES (07) - HYDRAULIC SYSTEM

1

R26896

TANK

- hydraulic, Serial Range: -7305917

1шт.

1

R38708

TANK

- hydraulic, Start Serial: 7305917

1шт.

2

R27346

GASKET

- cover plate

1шт.

3

R27322

PLATE

- cover, access

1шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

12шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

12шт.

7

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

1шт.

8

R18650

CAP

- filler

1шт.

10

R29753

ELECTRICAL GAUGE

GAUGE - sight, oil level check

2шт.

11

D42995

FILTER

- suction line

1шт.

12

221-18

PLUG - square head, 1-1/2" NPT Sq Hd, 1 1/2"-11 1/2 NPTF

1шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

14a

T53868

BUSHING

SPACER - bolt

2шт.

15

R27324

GASKET

- filter block

1шт.

16

R36277

BLOCK ASSY.

BLOCK - filter, if used

1шт.

17

R27525

VALVE

- oil bypass

1шт.

18

L52029

FILTER, ELEMENT

FILTER - oil, element

1шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

20

F61200

SPRING

- filter retaining

1шт.

21

92-8

LOCK WASHER,1/2"

1шт.

22

R36602

ROD

- filter retaining, if used

1шт.

23

R29648

HOOD

PLATE - side cover

1шт.

24

R27348

PLATE

- top cover, all models except winch

1шт.

24

R38493

COVER

PLATE - top cover, winch model

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

14шт.

26

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

14шт.

27

195-25

WASHER,3/8"

- flat, 3/8"

14шт.

28

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

30

195-41

WASHER,5/8"

- flat, 5/8"

4шт.

31

R42714

BREATHER

- hydraulic tank, no serviceable parts

1шт.

31

R24861

BREATHER

ASSEMBLY - hydraulic tank, use R42714, Includes: Refs. 32 - 37

1шт.

32

R30266

CAP

- breather

1шт.

33

R30267

TUBE

- poroplate, 10 micron filter

1шт.

34

R30268

SPRING

- breather

1шт.

35

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

36

R30269

VALVE

ASSEMBLY - breather

1шт.

37

R30271

FITTING

- breather

1шт.

38

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

39

R31153

GUARD

1шт.

40

R31155

ANGLE

BRACKET - lock

1шт.

41

R38772

RUBBER STRIP

TRIM

1шт.

42

129-400

WING NUT,1/2"-13

NUT - wing, 1/2" - 13 NC, if used

1шт.

43

R25792

BASE

BLOCK - filter, if used

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
