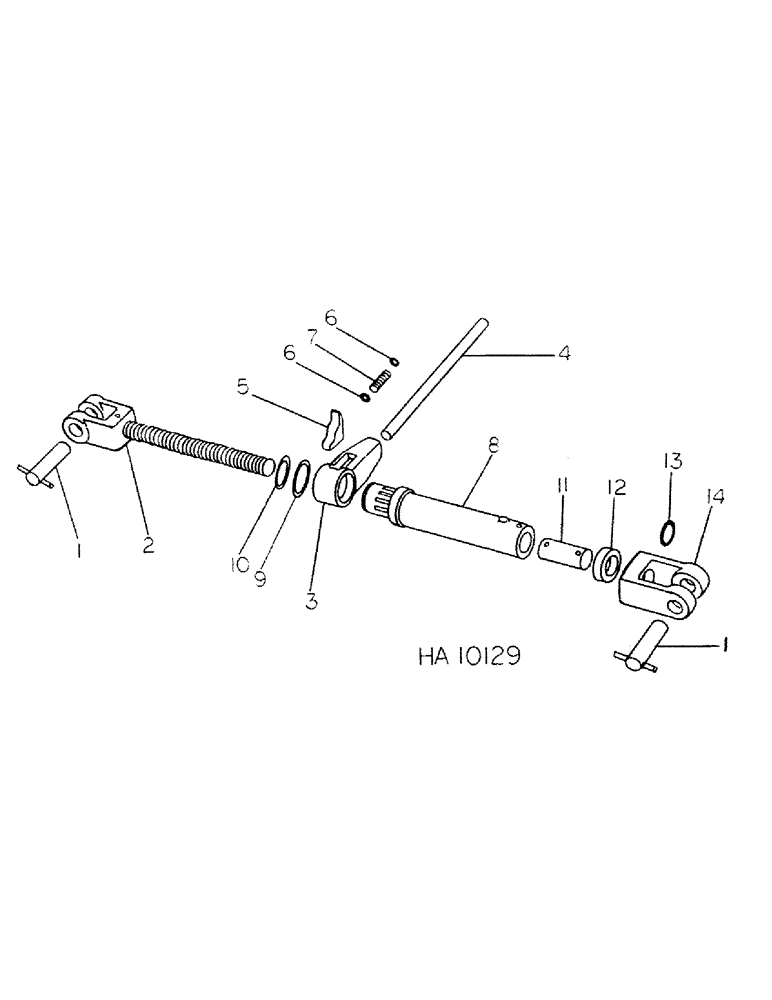

Запчасти Case IH 45 (D-31) - HAND LIFT, BUILT PRIOR TO JULY 1978

1

591104R1

PIN

locking

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

443186

GROOVED PIN,3/8" x 2 3/4", Type E

Pin, Grooved, 3/8" x 2 3/4", Type E

2шт.

2

591117R91

CAPSCREW

HEAD ASSY, adjusting screw, includes 1-616387R1, pin

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

3

591109R1

SUPPORT

ratchet lever

1шт.

591101R1

PIN

stop

1шт.

4

591103R1

ROD

ratchet lever arm

1шт.

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

5

591108R1

PAWL

DOG, ratchet

1шт.

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

591102R1

PIN

ratchet arm rod

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

6

469668R1

WASHER

.406 x .750 x .054

2шт.

7

M296

SPRING

ratchet

1шт.

8

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

lift adjusting

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 pipe

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

9

22811R1

WASHER

2.031 x 2.750 x .075

1шт.

10

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING, adjusting tube

1шт.

11

591105R1

ANCHOR

PIN, adjusting screw anchor

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

12

591474R1

COLLAR

anchor pin

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

13

50738V

THRUST BEARING

anchor pin thrust

1шт.

14

591110R1

YOKE

adjusting screw

1шт.
