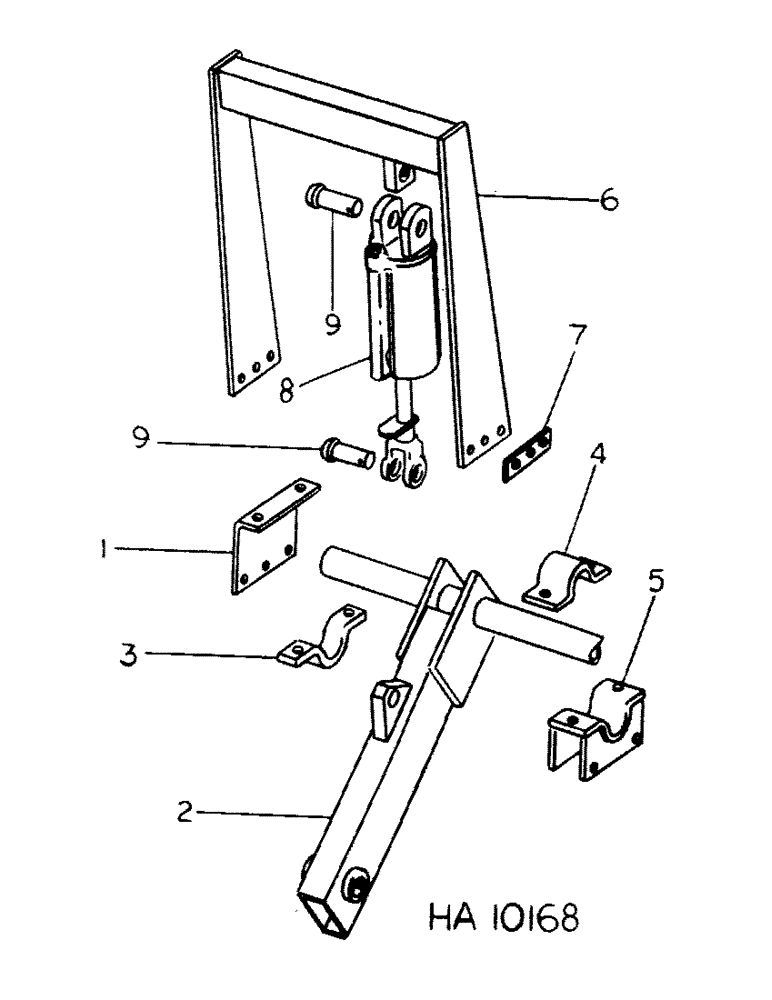

Запчасти Case IH 45 (D-30) - MAIN FRAME DEPTH CONTROL & ROCKSHAFT, BUILT AUGUST, 1976 SEASON AND SINCE

1

813361C1

SUPPORT

rockshaft outer

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

2

813410C2

ROCKSHAFT

ASSY, main frame, 22 foot 6 inch model

1шт.

2

813436C2

ROCKSHAFT

ASSY, main frame, 31 foot 6 inch model

1шт.

19628R1

FITTING, 1/8-27 45 deg self tap

2шт.

3

591526R1

CLAMP

rockshaft outer

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg elbow lub

2шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

810179C1

CLAMP

rockshaft inner, replaces 813056C1

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

5

810645C1

SUPPORT

ASSY, rockshaft inner, replaces 813473C2

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg elbow lub

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

6

813465C1

SUPPORT

ASSY, main wheel master cyl LH

1шт.

6

813466C1

SUPPORT

ASSY, main wheel master cyl RH

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

6шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

813259C1

BAR

cyl support reinforcing

2шт.

8

812735C92

CYLINDER

CYL ASSY, 3.5 x 8 DA, Cross Master

1шт.

812368C91

CYLINDER

CYL ASSY, 3.5 x 8 DA, Cessna Master, for components refer to master hyd cyl

1шт.

9

24581R1

PIN

1 x 3-1/2 std-hd-dld znd type 5

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.
