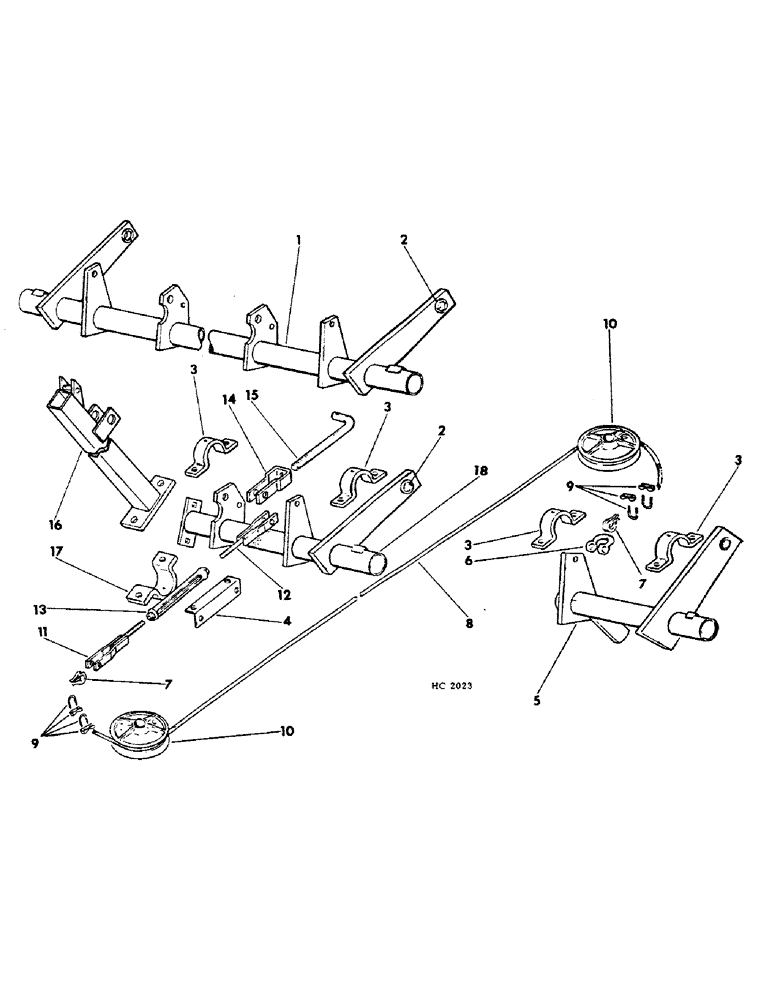

Запчасти Case IH 45 (D-28) - MAIN AND WING FRAME ROCKSHAFTS, BUILT PRIOR TO AUGUST, 1976 SEASON

1

599680R1

ROCKSHAFT ASSY, main frame, 22 foot 6 inch model

1шт.

1

811246C1

ROCKSHAFT ASSY, main frame, 31 foot 6 inch model, includes 2-591525R1, bushings, for use on machines built 1969 season to August, 1976 season, when equipped w/single rockshaft

1шт.

2

591525R1

BUSHING

lift link bar

4шт.

3

591526R1

CLAMP

main & wing frame rockshaft

8шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 self-tapping lub

8шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

4

592356R1

ANGLE, rockshaft inner support

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

592348R91

ROCKSHAFT ASSY, wing frame LH

1шт.

5

592349R91

ROCKSHAFT ASSY, wing frame RH, includes 1-591525R1 bushing

1шт.

6

605535R91

SHACKLE

ASSY, wing lift cable

2шт.

7

605826R1

EYE

THIMBLE, wing lift cable

4шт.

8

592364R1

CABLE

wing frame lift, 22 foot 6 inch model

2шт.

8

811242C1

CABLE

wing frame lift, 31 foot 6 inch model

2шт.

9

605827R91

CLIP

wing lift cable, 8 used on 22 foot 6 inch model & 12 used on 31 foot 6 inch model

1шт.

10

605657R1

PULLEY

wing lift cable

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

608085R1

WASHER

1.406 x 2.000 x .054

8шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

11

592365R91

ROD

YOKE ASSY, lift cable front, 5/8" UNC left hand threads, 3.8" length

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

12

592366R91

ROD

YOKE ASSY, lift cable rear

2шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

13

2193

TURNBUCKLE

lift cable yoke, 22 foot 6 inch model

2шт.

13

M73714

BUCKLE

TURNBUCKLE, lift cable yoke, 31 foot 6 inch model

2шт.

14

602821R1

LOCK

LOOP, rockshaft locking

2шт.

602801R1

PIN

loop locking

2шт.

591107R1

COTTER PIN

quick-attachable cotter

2шт.

15

592357R1

ROD

rockshaft locking loop

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

20703R1

WASHER

.906 x 1.750 x .054

2шт.

16

592269R91

ARM ASSY, wing lift control

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex-hd

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

592375R1

CLAMP, lift control arm

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 special taper drive, self-tapping str lub

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

592346R91

ROCKSHAFT ASSY, center frame LH, 22 foot 6 inch model

1шт.

18

592347R91

ROCKSHAFT ASSY, center frame RH, 22 foot 6 inch model, includes 1-591525R1, bushing, built 1965 season to 1969 season when equipped w/dual rockshaft

1шт.
