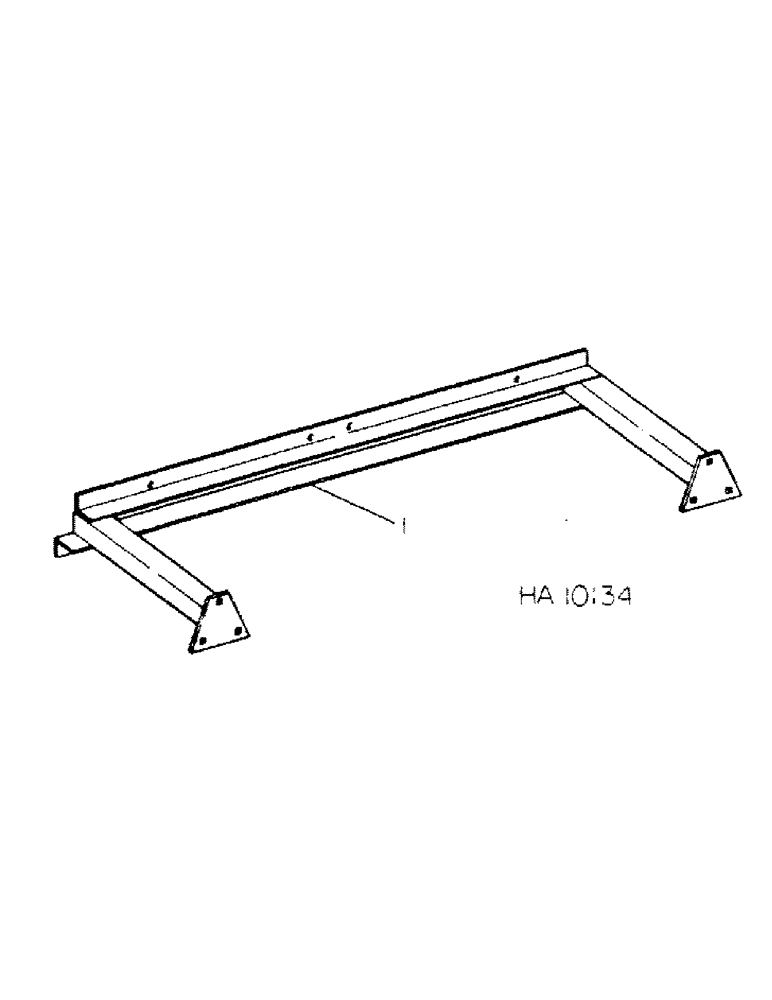

Запчасти Case IH 45 (D-27) - C-FRAME EXTENSIONS

1

591599R92

EXTENSION

ASSY, c frame

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 carriage

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

.531 x 1.250 x .105

4шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.
